Ionflux::Tools::TCPRemotePeer Class Reference
[Network interface]

TCPRemotePeer. More...

#include <TCPRemotePeer.hpp>

Inheritance diagram for Ionflux::Tools::TCPRemotePeer:

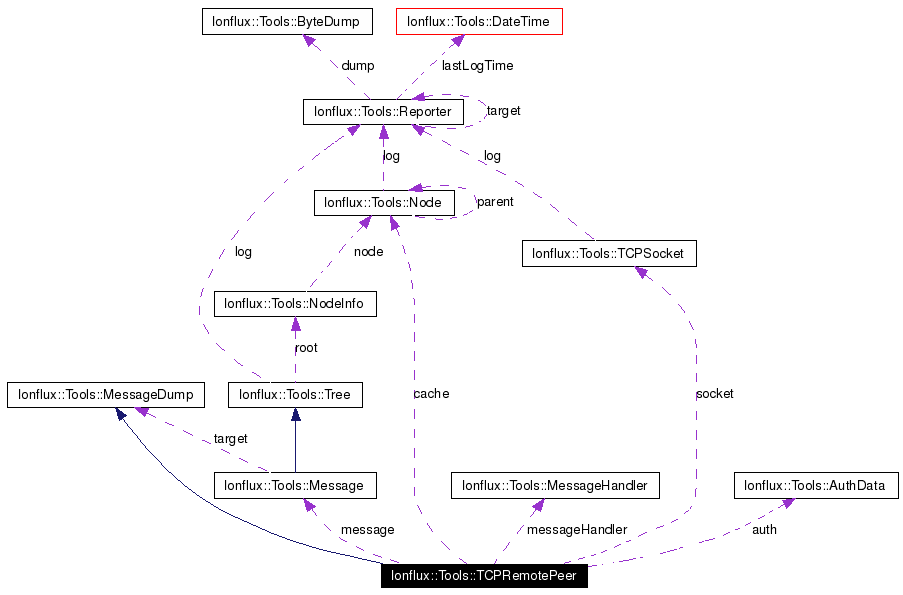

[legend]Collaboration diagram for Ionflux::Tools::TCPRemotePeer:

[legend]List of all members.

Public Member Functions
	TCPRemotePeer ()
	Constructor.
	TCPRemotePeer (int initID)
	Constructor.
virtual	~TCPRemotePeer ()
	Destructor.
virtual bool	receive ()
	Receive data.
virtual bool	send (const std::string &bytes)
	Send data.
virtual void	setID (int newID)
	Set ID.
virtual void	setProtocolState (int newProtocolState)
	Set protocol state.
virtual void	setMessageHandler (MessageHandler *newMessageHandler)
	Set message handler.
virtual int	getID ()
	Get ID of the peer.
virtual TCPSocket &	getSocket ()
	Get socket.
virtual AuthData &	getAuthData ()
	Get authentication data.
virtual std::string &	getRecvBuf ()
	Get receive buffer.
virtual unsigned int	removeRecvBytes (unsigned int numBytes)
	Remove bytes from receive buffer.
virtual void	clearRecvBuf ()
	Clear the receive buffer.
virtual int	getProtocolState ()
	Get protocol state.
virtual void *	getData ()
	Get data.
virtual unsigned int	getDataSize ()
	Get size of data.
virtual Message *	getMessage ()
	Get message.
virtual Node *	getCache ()
	Get cache.
virtual void	dump (Message &msg)
	Dump message.
Static Public Attributes
static const int	ID_NOT_SET = -1
	Peer ID: Not set.
static const int	PROTOCOL_STATE_UNDEFINED = -1
	Protocol state: Undefined.
Protected Attributes
int	id
	Numerical ID of the peer.
TCPSocket	socket
	Socket used to communicate with the remote peer.
std::string	recvBuf
	Receive buffer.
int	protocolState
	Protocol state.
void *	data
	Peer data.
unsigned int	dataSize
	Size of data.
Message *	message
	Message.
MessageHandler *	messageHandler
	Message handler.
AuthData	auth
	Authentication data.
Node *	cache
	Message data cache.

---

Detailed Description

TCPRemotePeer.

The remote peer of a TCP connection.

---

Constructor & Destructor Documentation

Ionflux::Tools::TCPRemotePeer::TCPRemotePeer (   )

Constructor. Construct new TCPRemotePeer object.

Ionflux::Tools::TCPRemotePeer::TCPRemotePeer (  int  initID  )

Constructor. Construct new TCPRemotePeer object. Parameters: initID  Numerical ID of the peer.

Ionflux::Tools::TCPRemotePeer::~TCPRemotePeer (   )  [virtual]

Destructor. Destruct TCPRemotePeer object.

---

Member Function Documentation

void Ionflux::Tools::TCPRemotePeer::clearRecvBuf (   )  [virtual]

Clear the receive buffer.

void Ionflux::Tools::TCPRemotePeer::dump (  Message &  msg  )  [virtual]

Dump message. Pass a message to the object for handling. Parameters: msg  The message to be dumped. Implements Ionflux::Tools::MessageDump.

AuthData & Ionflux::Tools::TCPRemotePeer::getAuthData (   )  [virtual]

Get authentication data. Get the authentication data for this peer. Returns: Authentication data used for this peer.

Node * Ionflux::Tools::TCPRemotePeer::getCache (   )  [virtual]

Get cache. Get a node in which message data (or other arbitrary data) can be stored. Returns: Pointer to cache node.

void * Ionflux::Tools::TCPRemotePeer::getData (   )  [virtual]

Get data. Returns: Pointer to data.

unsigned int Ionflux::Tools::TCPRemotePeer::getDataSize (   )  [virtual]

Get size of data. Returns: Size of data.

int Ionflux::Tools::TCPRemotePeer::getID (   )  [virtual]

Get ID of the peer. Returns: Numerical ID of the peer.

Message * Ionflux::Tools::TCPRemotePeer::getMessage (   )  [virtual]

Get message. Returns: Pointer to a message object, or 0 if message handling has not been initialized.

int Ionflux::Tools::TCPRemotePeer::getProtocolState (   )  [virtual]

Get protocol state. Returns: Current protocol state.

std::string & Ionflux::Tools::TCPRemotePeer::getRecvBuf (   )  [virtual]

Get receive buffer. Returns: Receive buffer.

TCPSocket & Ionflux::Tools::TCPRemotePeer::getSocket (   )  [virtual]

Get socket. Get the socket used to communicate with the remote peer. Returns: Socket used to communicate with the remote peer.

bool Ionflux::Tools::TCPRemotePeer::receive (   )  [virtual]

Receive data. Receives data from the socket. The data will be appended to the receive buffer. Returns: true on success, false otherwise.

unsigned int Ionflux::Tools::TCPRemotePeer::removeRecvBytes (  unsigned int  numBytes  )  [virtual]

Remove bytes from receive buffer. Removes the first numBytes bytes from the receive buffer. Returns: Number of bytes left in the receive buffer.

bool Ionflux::Tools::TCPRemotePeer::send (  const std::string &  bytes  )  [virtual]

Send data. Send data over the socket. Parameters: bytes  The data to be sent. Returns: true on success, false otherwise.

void Ionflux::Tools::TCPRemotePeer::setID (  int  newID  )  [virtual]

Set ID. Sets the numerical ID of this peer. Parameters: newID  Numerical ID of the peer.

void Ionflux::Tools::TCPRemotePeer::setMessageHandler (  MessageHandler *  newMessageHandler  )  [virtual]

Set message handler. Set the message handler to be used for message handling. Note: If you set this to a non-null value, the receive buffer will be disabled. Instead, all incoming data will be dumped into the message object of the remote peer. Parameters: newMessageHandler  Pointer to a message handler.

void Ionflux::Tools::TCPRemotePeer::setProtocolState (  int  newProtocolState  )  [virtual]

Set protocol state. Sets the current protocol state. Use this to set the protocol state for implementations of stateful protocols. Parameters: newProtocolState  The new protocol state.

---

Member Data Documentation

AuthData Ionflux::Tools::TCPRemotePeer::auth [protected]

Authentication data.

Node* Ionflux::Tools::TCPRemotePeer::cache [protected]

Message data cache. Can be used by the application to store message data (or other arbitrary data).

void* Ionflux::Tools::TCPRemotePeer::data [protected]

Peer data. You can use this to associate arbitrary data with a remote peer.

unsigned int Ionflux::Tools::TCPRemotePeer::dataSize [protected]

Size of data.

int Ionflux::Tools::TCPRemotePeer::id [protected]

Numerical ID of the peer.

const int Ionflux::Tools::TCPRemotePeer::ID_NOT_SET = -1 [static]

Peer ID: Not set.

Message* Ionflux::Tools::TCPRemotePeer::message [protected]

Message. This will be used for processing incoming data if you set a non-null message handler.

MessageHandler* Ionflux::Tools::TCPRemotePeer::messageHandler [protected]

Message handler.

const int Ionflux::Tools::TCPRemotePeer::PROTOCOL_STATE_UNDEFINED = -1 [static]

Protocol state: Undefined.

int Ionflux::Tools::TCPRemotePeer::protocolState [protected]

Protocol state. You can use this to keep track of protocol state in stateful protocols.

std::string Ionflux::Tools::TCPRemotePeer::recvBuf [protected]

Receive buffer.

TCPSocket Ionflux::Tools::TCPRemotePeer::socket [protected]

Socket used to communicate with the remote peer.

---

The documentation for this class was generated from the following files:

• TCPRemotePeer.hpp
• TCPRemotePeer.cpp

---
