Ionflux::Tools::TCPSocket Class Reference
[Network interface]

TCP socket. More...

#include <TCPSocket.hpp>

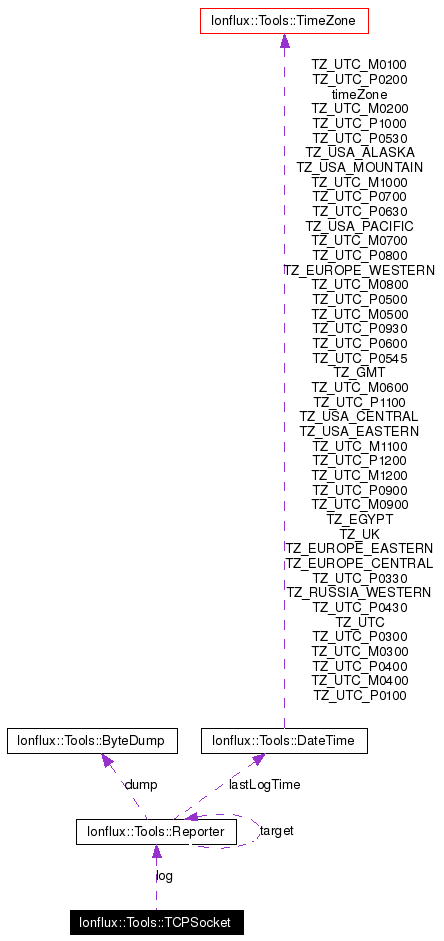

Collaboration diagram for Ionflux::Tools::TCPSocket:


Public Member Functions
	TCPSocket ()
	Constructor.
	TCPSocket (int initPort)
	Constructor.
	TCPSocket (const std::string &initHost, int initPort)
	Constructor.
virtual	~TCPSocket ()
	Destructor.
virtual bool	resolve ()
	Resolve remote hostname.
virtual bool	connect ()
	Connect.
virtual void	close ()
	Close connection.
virtual bool	bind ()
	Bind socket.
virtual bool	bind (unsigned int newAddress)
	Bind socket.
virtual bool	listen ()
	Listen.
virtual int	accept (sockaddr_in &newAddr, socklen_t &newAddrSize)
	Accept connection.
virtual bool	accept (TCPSocket &newClientSocket)
	Accept connection.
virtual bool	readBytes (std::string &bytes)
	Read bytes.
virtual bool	sendBytes (const std::string &bytes)
	Send bytes.
virtual void	setRemoteHost (const std::string &newHost)
	Set remote host.
virtual void	setPort (int newPort)
	Set port.
virtual void	setListenQueue (int newListenQueue)
	Set listen queue.
virtual void	setFD (int newFD)
	Set file descriptor.
virtual void	setConnectionState (bool newConnectionState)
	Set connection state.
virtual void	setBindingState (bool newBindingState)
	Set binding state.
virtual void	setListeningState (bool newListeningState)
	Set listening state.
virtual void	setClientIP (const std::string &newClientIP)
	Set client IP.
virtual int	getPort ()
	Get port.
virtual std::string	getRemoteHost ()
	Get remote host.
virtual int	getFD ()
	Get file descriptor.
virtual bool	isConnected ()
	Connection state.
virtual int	getListenQueue ()
	Get listen queue.
virtual bool	isBound ()
	Binding state.
virtual bool	isListening ()
	Listening state.
virtual std::string	getClientIP ()
	Get client IP.
virtual Reporter &	getLog ()
	Get Console output/logging facility.
Static Public Attributes
static const int	READ_BUFFER_SIZE = 1024
	Size of read buffer.
static const int	DEFAULT_LISTEN_QUEUE = 10
	Default queue size for incoming connections.
Protected Attributes
Ionflux::Tools::Reporter	log
	Console output/logging.
std::string	remoteHostName
	Remote hostname.
std::string	clientIP
	Client IP address.
int	port
	Remote port number.
int	theSocket
	Socket file descriptor.
bool	connected
	Connection state.
bool	bound
	Binding state.
bool	listening
	Listening state.
sockaddr_in	remoteHostAddress
	Address of the remote socket.
sockaddr_in	localHostAddress
	Address of the local socket.
hostent *	remoteHostEntry
	Host entry of the remote host.
int	listenQueue
	Queue size for incoming connections.

Detailed Description

TCP socket.

Wrapper class for a TCP socket.

Constructor & Destructor Documentation

Ionflux::Tools::TCPSocket::TCPSocket ( )

Constructor.
Construct a new TCPSocket object.

Ionflux::Tools::TCPSocket::TCPSocket ( int initPort )

Constructor.
Construct a new TCPSocket object.

Parameters:

initPort The port this socket object will connect to or listen on.

Ionflux::Tools::TCPSocket::TCPSocket ( const std::string & initHost,

int initPort

)

Constructor.
Construct a new TCPSocket object.

Parameters:

initHost The remote host this socket object will connect to.

initPort The port this socket object will connect to.

Ionflux::Tools::TCPSocket::~TCPSocket ( ) [virtual]

Destructor.
Destruct TCPSocket object.

Member Function Documentation

bool Ionflux::Tools::TCPSocket::accept ( TCPSocket & newClientSocket ) [virtual]

Accept connection.
Accepts a new client connection on a listening socket and initializes a TCPSocket object appropriately. Returns true on success, false otherwise.

Note:
On success, you can use the new remote client socket for I/O like you would use a local client socket.

Parameters:

newClientSocket Where to store the new remote client socket.

Returns:
true on success, false otherwise.

int Ionflux::Tools::TCPSocket::accept ( sockaddr_in & newAddr,

socklen_t & newAddrSize

) [virtual]

Accept connection.
Accepts a new client connection on a listening socket.

Note:
You must call listen() prior to accept().

Parameters:

newAddr Where to store the address of the connected peer.

newAddrSize Where to store size of the address of the connected peer.

Returns:
File descriptor of the new client socket.

bool Ionflux::Tools::TCPSocket::bind ( unsigned int newAddress ) [virtual]

Bind socket.
Bind a socket to a local port and interface. Pass INADDR_ANY to 'address' to bind to all available local interfaces. Returns true on success, false otherwise.

Parameters:

newAddress Local interface address to bind to.

Returns:
true on success, false otherwise.

bool Ionflux::Tools::TCPSocket::bind ( ) [virtual]

Bind socket.
Bind a socket to a local port on all available local interfaces.

Returns:
true on success, false otherwise.

void Ionflux::Tools::TCPSocket::close ( ) [virtual]

Close connection.
Closes the connection.

bool Ionflux::Tools::TCPSocket::connect ( ) [virtual]

Connect.
Connect to remote host.

Returns:
true on success, false otherwise.

std::string Ionflux::Tools::TCPSocket::getClientIP ( ) [virtual]

Get client IP.
Get the IP address which the socket is bound to.

Note:
For remote client sockets, the IP address will be set automatically by accept(). However, it will not be set automatically for a local client socket.

Returns:
IP address, in numbers-and-dots notation.

int Ionflux::Tools::TCPSocket::getFD ( ) [virtual]

Get file descriptor.
Get the file descriptor associated with this socket object.

Returns:
Socket file descriptor..

int Ionflux::Tools::TCPSocket::getListenQueue ( ) [virtual]

Get listen queue.
Get the listen queue size for a server socket.

Returns:
Listen queue size.

Reporter & Ionflux::Tools::TCPSocket::getLog ( ) [virtual]

Get Console output/logging facility.

Returns:
The console output/logging facility used by this object.

int Ionflux::Tools::TCPSocket::getPort ( ) [virtual]

Get port.
Get the port number this socket object will connect to.

Returns:
Port number.

string Ionflux::Tools::TCPSocket::getRemoteHost ( ) [virtual]

Get remote host.
Get the hostname of the remote host this socket object will connect to.

Returns:
Hostname.

bool Ionflux::Tools::TCPSocket::isBound ( ) [virtual]

Binding state.
Get the binding state of the socket.

Note:
This is only valid for server sockets.

Returns:
true if this socket object is bound to a local port, false otherwise.

bool Ionflux::Tools::TCPSocket::isConnected ( ) [virtual]

Connection state.
Get the connection state.

Note:
This is only valid for client sockets.

Returns:
true if this socket object is connected, false otherwise.

bool Ionflux::Tools::TCPSocket::isListening ( ) [virtual]

Listening state.
Get the listening state of the socket.

Note:
This is only valid for server sockets.

Returns:
true if this socket object is listening, false otherwise.

bool Ionflux::Tools::TCPSocket::listen ( ) [virtual]

Listen.
Listen for incoming connections.

Note:
You must call bind() prior to listen().

Returns:
true on success, false otherwise.

bool Ionflux::Tools::TCPSocket::readBytes ( std::string & bytes ) [virtual]

Read bytes.
Read bytes from the socket.

Parameters:

bytes String to store incoming bytes.

Returns:
true on success, false otherwise.

bool Ionflux::Tools::TCPSocket::resolve ( ) [virtual]

Resolve remote hostname.
Resolve the remote hostname.

Returns:
true on success, false otherwise.

bool Ionflux::Tools::TCPSocket::sendBytes ( const std::string & bytes ) [virtual]

Send bytes.
Send bytes over the socket.

Parameters:

bytes Bytes to send over the socket.

Returns:
true on success, false otherwise.

void Ionflux::Tools::TCPSocket::setBindingState ( bool newBindingState ) [virtual]

Set binding state.
Sets the binding state.

Note:
You should not normally use this, since the binding state is set automatically. However, if you want to construct a TCPSocket object for an existing file descriptor, it might be necessary to set the binding state manually.

Parameters:

newBindingState Binding state.

void Ionflux::Tools::TCPSocket::setClientIP ( const std::string & newClientIP ) [virtual]

Set client IP.
Sets the IP address of the client represented by this TCPSocket object.

Note:
This is used by accept() to store the IP address of a newly connected client. You should not normally set this by hand.

Parameters:

newClientIP Client IP.

void Ionflux::Tools::TCPSocket::setConnectionState ( bool newConnectionState ) [virtual]

Set connection state.
Sets the connection state.

Note:
You should not normally use this, since the connection state is set automatically. However, if you want to construct a TCPSocket object for an existing file descriptor, it might be necessary to set the connection state manually.

Parameters:

newConnectionState Connection state.

void Ionflux::Tools::TCPSocket::setFD ( int newFD ) [virtual]

Set file descriptor.
Sets the file descriptor associated with this socket object.

Note:
If the TCPSocket object is initialized and connected when you call this function, it will be closed and its internal state reset.

Parameters:

newFD Socket file descriptor.

void Ionflux::Tools::TCPSocket::setListeningState ( bool newListeningState ) [virtual]

Set listening state.
Sets the listening state.

Note:
You should not normally use this, since the listening state is set automatically. However, if you want to construct a TCPSocket object for an existing file descriptor, it might be necessary to set the listening state manually.

Parameters:

newListeningState Listening state.

void Ionflux::Tools::TCPSocket::setListenQueue ( int newListenQueue ) [virtual]

Set listen queue.
Sets the size of the queue for incoming connections.

Note:
This is only valid for server sockets.

Parameters:

newListenQueue Queue size for incoming connections.

void Ionflux::Tools::TCPSocket::setPort ( int newPort ) [virtual]

Set port.
Sets the port this socket object will connect to.

Parameters:

newPort Port number of the remote host.

void Ionflux::Tools::TCPSocket::setRemoteHost ( const std::string & newHost ) [virtual]

Set remote host.
Sets the remote host this socket object will connect to. You can specify either a host name or an IP address.

Parameters:

newHost Hostname of the remote host.

Member Data Documentation

bool Ionflux::Tools::TCPSocket::bound [protected]

Binding state.

std::string Ionflux::Tools::TCPSocket::clientIP [protected]

Client IP address.
This is used by accept() to store the IP address of a connected client.

bool Ionflux::Tools::TCPSocket::connected [protected]

Connection state.

const int Ionflux::Tools::TCPSocket::DEFAULT_LISTEN_QUEUE = 10 [static]

Default queue size for incoming connections.

bool Ionflux::Tools::TCPSocket::listening [protected]

Listening state.

int Ionflux::Tools::TCPSocket::listenQueue [protected]

Queue size for incoming connections.

struct sockaddr_in Ionflux::Tools::TCPSocket::localHostAddress [protected]

Address of the local socket.

Ionflux::Tools::Reporter Ionflux::Tools::TCPSocket::log [protected]

Console output/logging.

int Ionflux::Tools::TCPSocket::port [protected]

Remote port number.

const int Ionflux::Tools::TCPSocket::READ_BUFFER_SIZE = 1024 [static]

Size of read buffer.

struct sockaddr_in Ionflux::Tools::TCPSocket::remoteHostAddress [protected]

Address of the remote socket.

struct hostent* Ionflux::Tools::TCPSocket::remoteHostEntry [protected]

Host entry of the remote host.

std::string Ionflux::Tools::TCPSocket::remoteHostName [protected]

Remote hostname.

int Ionflux::Tools::TCPSocket::theSocket [protected]

Socket file descriptor.

The documentation for this class was generated from the following files:

Generated on Tue Mar 14 21:11:09 2006 for Ionflux Tools Class Library (iftools) by

1.4.6

Ionflux::Tools::TCPSocket Class Reference [Network interface]

Public Member Functions

Static Public Attributes

Protected Attributes

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation

Ionflux::Tools::TCPSocket Class Reference
[Network interface]
