Ionflux::Tools::Node Class Reference
[Data handling]

Tree node. More...

#include <Node.hpp>

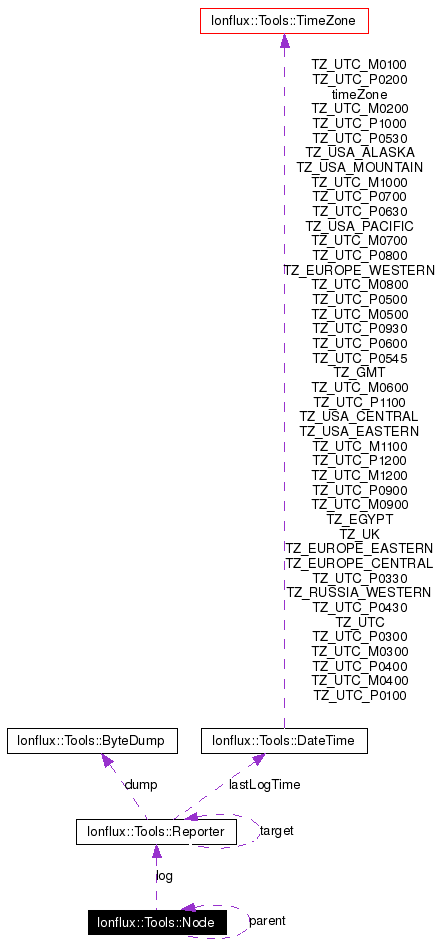

Collaboration diagram for Ionflux::Tools::Node:

[legend]List of all members.

Public Member Functions
	Node ()
	Constructor.
	Node (Node &sourceNode)
	Constructor.
	Node (Node *initParent)
	Constructor.
	Node (Node *initParent, int initID)
	Constructor.
	Node (Node *initParent, int initID, const std::string &initName)
	Constructor.
	Node (Node *initParent, int initID, const std::string &initName, int initDataType)
	Constructor.
	Node (Node *initParent, int initID, const std::string &initName, int initDataType, bool initManaged)
	Constructor.
virtual	~Node ()
	Destructor.
virtual void	setID (int newID)
	Set ID.
virtual void	setName (const std::string &newName)
	Set Name.
virtual void	setParent (Node *newParent)
	Set parent Node.
virtual void	setDataType (int newDataType)
	Set data type.
virtual int	addData (const std::string &newData)
	Add data entry.
virtual int	addData (int newData)
	Add data entry.
virtual int	addData (double newData)
	Add data entry.
virtual bool	setBlob (unsigned int dataIndex, const std::string &newData)
	Set data entry.
virtual bool	setData (unsigned int dataIndex, const std::string &newData)
	Set data entry.
virtual bool	setData (unsigned int dataIndex, int newData)
	Set data entry.
virtual bool	setData (unsigned int dataIndex, unsigned int newData)
	Set data entry.
virtual bool	setData (unsigned int dataIndex, double newData)
	Set data entry.
virtual bool	setData (const std::string &newData)
	Set data entry.
virtual bool	setData (int newData)
	Set data entry.
virtual bool	setData (unsigned int newData)
	Set data entry.
virtual bool	setData (double newData)
	Set data entry.
virtual std::string	getData (unsigned int dataIndex)
	Get data entry.
virtual std::string	getBlob (unsigned int dataIndex)
	Get data entry.
virtual int	getInt (unsigned int dataIndex)
	Get data entry.
virtual double	getDouble (unsigned int dataIndex)
	Get data entry.
virtual bool	removeData (unsigned int dataIndex)
	Remove data entry.
virtual void	clearData (bool recursive)
	Remove all data entries.
virtual Node *	addChild (int childID=NODE_ID_NOT_SET, const std::string &childName="")
	Add a child.
virtual void	addChild (Node *newChild, bool newManage)
	Add a child.
virtual Node *	findChild (int searchID, bool recursive=false)
	Find child node.
virtual Node *	findChild (const std::string &searchName, bool recursive=false)
	Find child node.
virtual Node *	getChild (unsigned int childIndex)
	Get child node.
virtual unsigned int	getNumChildren (bool recursive)
	Get number of children.
virtual bool	removeChild (unsigned int childIndex)
	Remove child node.
virtual bool	removeChild (Node *targetNode, bool recursive)
	Remove child node.
virtual void	removeAllChildren (bool recursive)
	Remove all child nodes.
virtual bool	setChild (unsigned int childIndex, Node *newChild, bool newManage)
	Set child node.
virtual void	removeManagedChildren ()
	Remove managed children.
virtual int	getChildIndex (Node *targetNode)
	Get child node index.
virtual unsigned int	printDebugInfo (int targetLevel, int callingLevel, int parentID, int childID)
	Print debug information.
virtual unsigned int	printDebugInfo (int targetLevel)
	Print debug information.
virtual int	getUID (bool treeUID)
	Get unique ID.
virtual void	setUIDMode (int newUIDMode)
	Set child node UID assignment mode.
virtual void	setAutoCreate (bool newAutoCreate)
	Set auto-create mode.
virtual void	setIndexMode (int newIndexMode)
	Set child node indexing mode.
virtual void	traverse (NodeDump *target, int order)
	Traverse sub-tree.
virtual void	serialize (std::string &target)
	Serialize sub-tree.
virtual bool	unpack (const std::string &serialized, unsigned int blockStart, unsigned int blockSize)
	Unpack sub-tree.
virtual void	convertToNativeType ()
	Convert node to native data type.
virtual void	clearNameIndex ()
	Clear name index.
virtual void	clearIDIndex ()
	Clear ID index.
virtual void	clearIndexes ()
	Clear all indexes.
virtual void	copy (Ionflux::Tools::Node &target, unsigned int maxDepth=0, unsigned int currentDepth=0)
	Copy node.
virtual Node &	operator[] (int searchID)
	Find child node.
virtual Node &	operator[] (const std::string &searchName)
	Find child node.
virtual std::string	operator= (const std::string &newData)
	Assign value to data entry.
virtual int	operator= (int newData)
	Assign value to data entry.
virtual double	operator= (double newData)
	Assign value to data entry.
virtual Node &	operator= (Node &sourceNode)
	Copy assignment.
virtual bool	getAutoCreate ()
	Get auto-create mode.
virtual int	getUIDMode ()
	Get child node UID assignment mode.
virtual int	getIndexMode ()
	Get child node indexing mode.
virtual int	getID ()
	Get node ID.
virtual std::string	getName ()
	Get node name.
virtual int	getDataType ()
	Get data type.
virtual std::string	getData ()
	Get data.
virtual std::string	getBlob ()
	Get data as blob.
virtual int	getInt ()
	Get data as integer.
virtual double	getDouble ()
	Get data as double.
virtual unsigned int	getNumData ()
	Get number of data entries.
virtual unsigned int	getNumChildren ()
	Get number of children.
virtual Node *	getParent ()
	Get parent node.
virtual std::string	getPath ()
	Get tree path.
virtual void	clear ()
	Clear the node.
virtual Node &	merge (Node &sourceNode, bool replace=false, unsigned int maxDepth=0, unsigned int currentDepth=0)
	Merge nodes.
bool	combine (unsigned int from, unsigned int to, Node &target)
	Combine items.
std::string	toConfig (const std::string &indent="", unsigned int level=0)
	Get configuration file representation.
void	setManaged (bool newManaged)
	Set memory management flag.
bool	isManaged ()
	Get memory management flag.
virtual Reporter &	getLog ()
	Get Console output/logging facility.
Static Public Attributes
static const int	NODE_ID_NOT_SET = -1
	Node ID: Not set.
static const int	NODE_DATA_BLOB = 0
	Node data type: Blob (Binary large object, including byte strings).
static const int	NODE_DATA_INT = 1
	Node data type: Integer.
static const int	NODE_DATA_DOUBLE = 2
	Node data type: Double.
static const int	UID_MODE_NONE = 0
	Child node UID assignment mode: Do not assign UID (default).
static const int	UID_MODE_NODE = 1
	Child node UID assignment mode: Assign ID unique to this node.
static const int	UID_MODE_TREE = 2
	Child node UID assignment mode: Assign ID unique to the tree.
static const int	TRAVERSAL_INORDER = 0
	Traversal order: Inorder.
static const int	TRAVERSAL_PREORDER = 1
	Traversal order: Preorder.
static const int	TRAVERSAL_POSTORDER = 2
	Traversal order: Postorder.
static const unsigned int	NODE_HEADER_SIZE = 53
	Size of serialized node header in bytes.
static const int	INDEX_MODE_NONE = 0
	Indexing mode: Do not use indexing (default).
static const int	INDEX_MODE_NODE = 1
	Indexing mode: Per node indexing.
static const int	INDEX_MODE_TREE = 2
	Indexing mode: Per tree indexing.
static const unsigned int	MAX_ID_INDEX_SIZE = 268435456L
	Maximum size of ID index.
Protected Member Functions
virtual bool	validateChildIndex (unsigned int childIndex)
	Validate child node index.
virtual bool	validateDataIndex (unsigned int dataIndex)
	Validate data index.
virtual unsigned int	refChild (Node *childNode)
	Increase child node reference count.
virtual unsigned int	unrefChild (Node *childNode)
	Decrease child node reference count.
virtual unsigned int	getRefCount (Node *childNode)
	Get child node reference count.
virtual void	addIndexEntry (Node *indexNode)
	Add index entry.
virtual Node *	getIndexEntry (const std::string &indexName)
	Get index entry.
virtual void	removeIndexEntry (const std::string &indexName)
	Remove index entry.
virtual Node *	getIndexEntry (int indexID)
	Get index entry.
virtual void	removeIndexEntry (int indexID)
	Remove index entry.
virtual void	removeIndexEntries (Node *indexNode)
	Remove index entries.
Protected Attributes
Ionflux::Tools::Reporter *	log
	Console output/logging.
int	nodeID
	Numerical ID of this node.
std::string	nodeName
	Name of this node.
std::vector< NodeInfo >	children
	Vector of pointers to children.
std::vector< std::string >	nodeData
	Data vector.
int	dataType
	Node data type.
Node *	parent
	Parent node.
int	maxUID
	Maximum UID assigned by this node.
int	uidMode
	Child node UID assignment mode.
bool	autoCreate
	Auto-creation mode.
int	indexMode
	Indexing mode.
std::map< std::string, Node * >	nameIndex
	Index map.
std::vector< Node * >	idIndex
	Index vector (TODO: Maybe reimplement this as a hash map).
bool	managed
	Memory management mode.
std::map< Node *, unsigned int >	childNodeRef
	Child node reference counter.

---

Detailed Description

Tree node.

A single data node of a tree. Tree nodes can be used to store data of a hierarchical, non-cyclical structure, where each child node has exactly one parent node and loops do not exist. Each node also has a data vector where a large amount of values of identical type may be stored without the need of additional nodes. The type of a node can be one of BLOB, INT or DOUBLE, and all data will be converted as best as possible to fit the specified node data type. The node object also provides transparent serialization and unpacking of sub-trees from a data buffer and node resolution from a fully qualified tree path (see misc/node-serialization.txt and misc/path-resolution.txt for additional information). Dynamic auto-creation of child nodes is also supported.

---

Constructor & Destructor Documentation

Ionflux::Tools::Node::Node (   )

Constructor. Construct new Node object.

Ionflux::Tools::Node::Node (  Node &  sourceNode  )

Constructor. Construct new Node object. Parameters: sourceNode  Node which to copy.

Ionflux::Tools::Node::Node (  Node *  initParent  )

Constructor. Construct new Node object. Parameters: initParent  Pointer to parent node of this node.

Ionflux::Tools::Node::Node (  Node *  initParent, int  initID )

Constructor. Construct new Node object. Parameters: initParent  Pointer to parent node of this node. initID  Numerical ID of this node.

Ionflux::Tools::Node::Node (  Node *  initParent, int  initID, const std::string &  initName )

Constructor. Construct new Node object. Parameters: initParent  Pointer to parent node of this node. initID  Numerical ID of this node. initName  Name of this node.

Ionflux::Tools::Node::Node (  Node *  initParent, int  initID, const std::string &  initName, int  initDataType )

Constructor. Construct new Node object. Parameters: initParent  Pointer to parent node of this node. initID  Numerical ID of this node. initName  Name of this node. initDataType  Data type of this node.

Ionflux::Tools::Node::Node (  Node *  initParent, int  initID, const std::string &  initName, int  initDataType, bool  initManaged )

Constructor. Construct new Node object. Parameters: initParent  Pointer to parent node of this node. initID  Numerical ID of this node. initName  Name of this node. initDataType  Data type of this node. initManaged  Whether memory allocated for this node should be managed by its parent node.

Ionflux::Tools::Node::~Node (   )  [virtual]

Destructor. Destruct Node object.

---

Member Function Documentation

void Ionflux::Tools::Node::addChild (  Node *  newChild, bool  newManage )  [virtual]

Add a child. Adds a new child node to this node. Parameters: newChild  Pointer to child node. newManage  Whether memory allocated for the child node should be managed by this node.

Node * Ionflux::Tools::Node::addChild (  int  childID = NODE_ID_NOT_SET, const std::string &  childName = "" )  [virtual]

Add a child. Creates a new child node and adds it to this node. The node thus created is managed by its parent node. Parameters: childID  ID of the new child node. childName  Name of the new child node. Note: By default, the new node will have the same data type, the same UID assignment mode and the same node auto-create mode as its parent. Returns: Pointer to the new child node.

int Ionflux::Tools::Node::addData (  double  newData  )  [virtual]

Add data entry. Adds data to this node. Note: This function tries to convert as best as possible if the argument type does not match the node data type. Parameters: newData  Data to be added. Returns: The index of the data on success, -1 otherwise.

int Ionflux::Tools::Node::addData (  int  newData  )  [virtual]

Add data entry. Adds data to this node. Note: This function tries to convert as best as possible if the argument type does not match the node data type. Parameters: newData  Data to be added. Returns: The index of the data on success, -1 otherwise.

int Ionflux::Tools::Node::addData (  const std::string &  newData  )  [virtual]

Add data entry. Adds data to this node. Note: This function tries to convert as best as possible if the argument type does not match the node data type. Parameters: newData  Data to be added. Returns: The index of the data on success, -1 otherwise.

void Ionflux::Tools::Node::addIndexEntry (  Node *  indexNode  )  [protected, virtual]

Add index entry. Adds a child node to the name or ID index (or both). Note: A child node will be added to an index only if either its name is not the empty string or its ID is not NODE_ID_NOT_SET and not negative. If both keys (name or ID) are set to suitable values, the node will be added to both indexes. If the indexing mode is INDEX_MODE_NONE or indexNode is null, this function will do nothing. Parameters: indexNode  Node for which an index entry should be added.

void Ionflux::Tools::Node::clear (   )  [virtual]

Clear the node.

void Ionflux::Tools::Node::clearData (  bool  recursive  )  [virtual]

Remove all data entries. Remove all data entries from this node. Pass true to remove all data entries from child nodes recursively. Parameters: recursive  Whether to remove data entries of child nodes recursively.

void Ionflux::Tools::Node::clearIDIndex (   )  [virtual]

Clear ID index.

void Ionflux::Tools::Node::clearIndexes (   )  [virtual]

Clear all indexes.

void Ionflux::Tools::Node::clearNameIndex (   )  [virtual]

Clear name index.

bool Ionflux::Tools::Node::combine (  unsigned int  from, unsigned int  to, Node &  target )

Combine items. Combines each data entry of a first level child node (called a class of items) with data entries from the other first level child nodes (classes). Only nodes in the range from up to (and including) to will be used for combination. The result is stored in target, with each first level node containing a unique combination of items as its data entries. Returns: true on success, false otherwise.

void Ionflux::Tools::Node::convertToNativeType (   )  [virtual]

Convert node to native data type. Converts the node to the data type best suited for representing its data. This is accomplished by checking the first data entry and converting all data entries to the new type. Note: This only applies to nodes of type Node::NODE_DATA_BLOB. For other data types, it is assumed that the data type is already optimal to represent the data contained in the node.

void Ionflux::Tools::Node::copy (  Ionflux::Tools::Node &  target, unsigned int  maxDepth = 0, unsigned int  currentDepth = 0 )  [virtual]

Copy node. Copy the node to a specified target node. Child nodes will be copied recursively up to the maximum depth specified, or to the maximum possible depth if no maximum depth is specified. Parameters: target  Target for the copy. maxDepth  Maximum recursion depth. currentDepth  Depth of current node.

Node * Ionflux::Tools::Node::findChild (  const std::string &  searchName, bool  recursive = false )  [virtual]

Find child node. Return a child by name. Parameters: searchName  The name of the child node to be returned. recursive  Whether to search recursively through all child nodes. Returns: Pointer of the first child node with the specified name, or 0 if no child with the specified name is found.

Node * Ionflux::Tools::Node::findChild (  int  searchID, bool  recursive = false )  [virtual]

Find child node. Return a child by numerical ID. Parameters: searchID  The ID of the child node to be returned. recursive  Whether to search recursively through all child nodes. Returns: Pointer of the first child node with the specified ID, or 0 if no child with the specified ID is found.

bool Ionflux::Tools::Node::getAutoCreate (   )  [virtual]

Get auto-create mode. Returns: true if auto-create mode is enabled, false otherwise.

std::string Ionflux::Tools::Node::getBlob (   )  [virtual]

Get data as blob. Returns: Data entry (at index 0).

std::string Ionflux::Tools::Node::getBlob (  unsigned int  dataIndex  )  [virtual]

Get data entry. Get data entry with specified index. Note: If used with an INT or DOUBLE node, this returns the binary representation of the number (in network byte order). Parameters: dataIndex  Data index. Returns: Data entry, or an empty string if entry with specified index does not exist.

Node * Ionflux::Tools::Node::getChild (  unsigned int  childIndex  )  [virtual]

Get child node. Get child node with specified index. Parameters: childIndex  Index of the child node to be returned. Returns: Pointer to the child node with the specified index, or 0 if no child node with the specified index exists.

int Ionflux::Tools::Node::getChildIndex (  Node *  targetNode  )  [virtual]

Get child node index. Get the index of a child node. Parameters: targetNode  Child node. Returns: Index of the specified child node, or -1 if the specified node is not a child node of this node.

std::string Ionflux::Tools::Node::getData (   )  [virtual]

Get data. Returns: Data entry (at index 0).

std::string Ionflux::Tools::Node::getData (  unsigned int  dataIndex  )  [virtual]

Get data entry. Get data entry with specified index. Note: If used with an INT or DOUBLE node, this returns the string representation of the number. If you want the exact binary representation, use getBlob() instead. Parameters: dataIndex  Data index. Returns: Data entry, or an empty string if entry with specified index does not exist.

int Ionflux::Tools::Node::getDataType (   )  [virtual]

Get data type. Returns: Node data type.

double Ionflux::Tools::Node::getDouble (   )  [virtual]

Get data as double. Returns: Data entry (at index 0).

double Ionflux::Tools::Node::getDouble (  unsigned int  dataIndex  )  [virtual]

Get data entry. Get data entry with specified index. Note: If used with a BLOB node, using this may lead to unexpected behavior. Parameters: dataIndex  Data index. Returns: Data entry, or 0 if entry with specified index does not exist.

int Ionflux::Tools::Node::getID (   )  [virtual]

Get node ID. Returns: Node ID.

Node * Ionflux::Tools::Node::getIndexEntry (  int  indexID  )  [protected, virtual]

Get index entry. Retreives a child node info record by ID. Note: If a corresponding node info entry is not found or the indexing mode is INDEX_MODE_NONE or indexID is negative, this function will return null. Parameters: indexID  ID to search for. Returns: Pointer to a node with the specified name, or null if no suitable node is found.

Node * Ionflux::Tools::Node::getIndexEntry (  const std::string &  indexName  )  [protected, virtual]

Get index entry. Retreives a child node info record by name. Note: If a corresponding index entry is not found or the indexing mode is INDEX_MODE_NONE or indexID is negative, this function will return null. Parameters: indexName  Name to search for. Returns: Pointer to a node with the specified name, or null if no suitable node is found.

int Ionflux::Tools::Node::getIndexMode (   )  [virtual]

Get child node indexing mode. Returns: Indexing mode.

int Ionflux::Tools::Node::getInt (   )  [virtual]

Get data as integer. Returns: Data entry (at index 0).

int Ionflux::Tools::Node::getInt (  unsigned int  dataIndex  )  [virtual]

Get data entry. Get data entry with specified index. Note: If used with a BLOB node, using this may lead to unexpected behavior. Parameters: dataIndex  Data index. Returns: Data entry, or 0 if entry with specified index does not exist.

Reporter & Ionflux::Tools::Node::getLog (   )  [virtual]

Get Console output/logging facility. Returns: The console output/logging facility used by this object.

std::string Ionflux::Tools::Node::getName (   )  [virtual]

Get node name. Returns: Node name.

unsigned int Ionflux::Tools::Node::getNumChildren (   )  [virtual]

Get number of children. Returns: Number of child nodes.

unsigned int Ionflux::Tools::Node::getNumChildren (  bool  recursive  )  [virtual]

Get number of children. Return the number of children of this node. Pass true to retrieve the number of children recursively. Note: If called for a root node, this may be used to retrieve the number of nodes in a tree. Parameters: recursive  Whether to get the number of children recursively. Returns: Number of child nodes.

unsigned int Ionflux::Tools::Node::getNumData (   )  [virtual]

Get number of data entries. Returns: Number of data entries.

Node * Ionflux::Tools::Node::getParent (   )  [virtual]

Get parent node. Returns: Pointer to parent node, or 0 if this is a root node.

std::string Ionflux::Tools::Node::getPath (   )  [virtual]

Get tree path. Get the fully qualified tree path from the root node to this node. Note: If a node in the path has a name, that name will be used in the tree path expression with the resolution operator. If a node has no name, but an ID, the ID will be used in the tree path expression using subscripting. Returns: Fully qualified tree path expression.

unsigned int Ionflux::Tools::Node::getRefCount (  Node *  childNode  )  [protected, virtual]

Get child node reference count. Gets the reference count for a child node. Parameters: childNode  Pointer to a child node. Returns: Reference count for childNode.

int Ionflux::Tools::Node::getUID (  bool  treeUID  )  [virtual]

Get unique ID. Gets a unique ID (UID) for this node. The return value will be unique to this node if false is passed and unique to the whole tree if true is passed. Parameters: treeUID  Whether the UID should be unique to the whole tree. Returns: Unique ID.

int Ionflux::Tools::Node::getUIDMode (   )  [virtual]

Get child node UID assignment mode. Returns: UID assignment mode.

bool Ionflux::Tools::Node::isManaged (   )

Get memory management flag. Get the current memory management mode of this node. Returns: true if memory allocated for this node is managed by its parent node, false otherwise.

Node & Ionflux::Tools::Node::merge (  Node &  sourceNode, bool  replace = false, unsigned int  maxDepth = 0, unsigned int  currentDepth = 0 )  [virtual]

Merge nodes. Merges data entries and child nodes of the source node into the node. Note: The name and ID of each source child node will be checked against names and IDs child nodes of the source node. If replace is false or omitted, child nodes of the target node will not be replaced by child nodes of the source node if names or IDs are equal. Parameters: sourceNode  Node which should be merged. replace  Whether child nodes in the target node should be replaced by child nodes from the source node. maxDepth  Maximum recursion depth. currentDepth  Depth of current node.

Node & Ionflux::Tools::Node::operator= (  Node &  sourceNode  )  [virtual]

Copy assignment. Copies a node (and all its child nodes). The target node will retain its name, ID and parent, but all previous data and child nodes will be replaced by the data entries and child nodes of the node which is copied. Parameters: sourceNode  Node which should be copied.

double Ionflux::Tools::Node::operator= (  double  newData  )  [virtual]

Assign value to data entry. Assigns a value to the first data entry. Parameters: newData  New value for data entry.

int Ionflux::Tools::Node::operator= (  int  newData  )  [virtual]

Assign value to data entry. Assigns a value to the first data entry. Parameters: newData  New value for data entry.

std::string Ionflux::Tools::Node::operator= (  const std::string &  newData  )  [virtual]

Assign value to data entry. Assigns a value to the first data entry. Parameters: newData  New value for data entry.

Node & Ionflux::Tools::Node::operator[] (  const std::string &  searchName  )  [virtual]

Find child node. Return a child by name. Note: This will always create non-existent nodes, even with auto-create turned off. If you do not want this, you should not use subscripting, but findChild() instead. Also be aware that you cannot use subscription operators to access data fields in your code, while this is possible if you use subscripting in tree path expressions which are parsed at run-time. Use getData() or parsed tree paths if you want to access data entries in your source. Parameters: searchName  The name of the child node to be returned. Returns: First child node with specified name, or a newly created node with that name. See also: findChild(), getData()

Node & Ionflux::Tools::Node::operator[] (  int  searchID  )  [virtual]

Find child node. Return a child by numerical ID. Note: This will always create non-existent nodes, even with auto-create turned off. If you do not want this, you should not use subscripting, but findChild() instead. Also be aware that you cannot use subscription operators to access data fields in your code, while this is possible if you use subscripting in tree path expressions which are parsed at run-time. Use getData() or parsed tree paths if you want to access data entries in your source. Parameters: searchID  The ID of the child node to be returned. Returns: First child node with specified ID, or a newly created node with that ID. See also: findChild(), getData()

unsigned int Ionflux::Tools::Node::printDebugInfo (  int  targetLevel  )  [virtual]

Print debug information. Prints debug information for child nodes belonging to a certain tree depth level, while this node is assumed to be the root node.

unsigned int Ionflux::Tools::Node::printDebugInfo (  int  targetLevel, int  callingLevel, int  parentID, int  childID )  [virtual]

Print debug information. Prints debug information for child nodes belonging to a certain tree depth level. Parameters: targetLevel  The tree depth level for which debugging information should be printed. callingLevel  The tree depth level of the calling node. parentID  The child ID of the calling node. childID  The child ID of this node. Returns: Number of nodes of the specified tree depth.

unsigned int Ionflux::Tools::Node::refChild (  Node *  childNode  )  [protected, virtual]

Increase child node reference count. Increases the reference count for a child node by one. Parameters: childNode  Pointer to a child node. Returns: Reference count for childNode (after increment).

void Ionflux::Tools::Node::removeAllChildren (  bool  recursive  )  [virtual]

Remove all child nodes. Remove all child nodes from this node. Pass true to recursively remove all child nodes. Note: If a child node to be removed is managed by its parent node, it will also be deleted. Also, child nodes of managed nodes will always be removed recursively, whether you pass true or not. This is necessary to ensure that all managed nodes are deleted if their parent node is deleted. Parameters: recursive  Whether to remove child nodes recursively.

bool Ionflux::Tools::Node::removeChild (  Node *  targetNode, bool  recursive )  [virtual]

Remove child node. Remove a child node from this node. Pass true to recursively try to remove the specified node. Note: If the child node to be removed is managed by this node and its (parent node internal) reference count drops to zero, it will also be deleted. Parameters: targetNode  Pointer to the node to be deleted. recursive  Whether to remove the node recursively. Returns: true if the specified node has been deleted successfully, false otherwise.

bool Ionflux::Tools::Node::removeChild (  unsigned int  childIndex  )  [virtual]

Remove child node. Remove a child node from this node. Note: If the child node to be removed is managed by this node and its (parent node internal) reference count drops to zero, it will also be deleted. Parameters: childIndex  Index of the child node to be deleted. Returns: true if the specified node has been deleted successfully, false otherwise.

bool Ionflux::Tools::Node::removeData (  unsigned int  dataIndex  )  [virtual]

Remove data entry. Remove data entry with specified index. Parameters: dataIndex  Data index. Returns: true on success, false otherwise.

void Ionflux::Tools::Node::removeIndexEntries (  Node *  indexNode  )  [protected, virtual]

Remove index entries. Removes a child node from all Indexes.

void Ionflux::Tools::Node::removeIndexEntry (  int  indexID  )  [protected, virtual]

Remove index entry. Removes a child node info record from the ID index. Parameters: indexID  ID to search for.

void Ionflux::Tools::Node::removeIndexEntry (  const std::string &  indexName  )  [protected, virtual]

Remove index entry. Removes a child node info record from the name index. Parameters: indexName  Name to search for.

void Ionflux::Tools::Node::removeManagedChildren (   )  [virtual]

Remove managed children. Removes all managed child nodes that are descendants of this node recursively.

void Ionflux::Tools::Node::serialize (  std::string &  target  )  [virtual]

Serialize sub-tree. Serialize the sub-tree starting at this node. Any data resulting from the serialization will be appended to the target byte string. Note: See misc/node-serialization.txt for a description of the serialization format. Parameters: target  Where to store the serialized sub-tree. See also: unpack()

void Ionflux::Tools::Node::setAutoCreate (  bool  newAutoCreate  )  [virtual]

Set auto-create mode. If set to true, any operation that tries to access a non-existent child node or data entry will automatically create that child node or data entry. If set to false, such operations will (usually) return 0. Parameters: newAutoCreate  Auto-create mode.

bool Ionflux::Tools::Node::setBlob (  unsigned int  dataIndex, const std::string &  newData )  [virtual]

Set data entry. Sets value of data entry with specified index. Note: This function will always set the data entry to the specified bytes, regardless of the node data type. Parameters: dataIndex  Data index. newData  New value for data entry. Returns: true on success, false otherwise.

bool Ionflux::Tools::Node::setChild (  unsigned int  childIndex, Node *  newChild, bool  newManage )  [virtual]

Set child node. Set a child node to a specified node. Parameters: childIndex  Index of the child node to be set. newChild  Node to be set as child node. newManage  Whether memory allocated for the child node should be managed by this node. Returns: true on success, false otherwise.

bool Ionflux::Tools::Node::setData (  double  newData  )  [virtual]

Set data entry. Sets value of first data entry with specified index. Note: This function tries to convert as best as possible if the argument type does not match the node data type. Parameters: newData  New value for data entry. Returns: true on success, false otherwise.

bool Ionflux::Tools::Node::setData (  unsigned int  newData  )  [virtual]

Set data entry. Sets value of first data entry with specified index. Note: This function tries to convert as best as possible if the argument type does not match the node data type. Parameters: newData  New value for data entry. Returns: true on success, false otherwise.

bool Ionflux::Tools::Node::setData (  int  newData  )  [virtual]

Set data entry. Sets value of first data entry with specified index. Note: This function tries to convert as best as possible if the argument type does not match the node data type. Parameters: newData  New value for data entry. Returns: true on success, false otherwise.

bool Ionflux::Tools::Node::setData (  const std::string &  newData  )  [virtual]

Set data entry. Sets value of first data entry with specified index. Note: This function tries to convert as best as possible if the argument type does not match the node data type. Parameters: newData  New value for data entry. Returns: true on success, false otherwise.

bool Ionflux::Tools::Node::setData (  unsigned int  dataIndex, double  newData )  [virtual]

Set data entry. Sets value of data entry with specified index. Note: This function tries to convert as best as possible if the argument type does not match the node data type. Parameters: dataIndex  Data index. newData  New value for data entry. Returns: true on success, false otherwise.

bool Ionflux::Tools::Node::setData (  unsigned int  dataIndex, unsigned int  newData )  [virtual]

Set data entry. Sets value of data entry with specified index. Note: This function tries to convert as best as possible if the argument type does not match the node data type. Parameters: dataIndex  Data index. newData  New value for data entry. Returns: true on success, false otherwise.

bool Ionflux::Tools::Node::setData (  unsigned int  dataIndex, int  newData )  [virtual]

Set data entry. Sets value of data entry with specified index. Note: This function tries to convert as best as possible if the argument type does not match the node data type. Parameters: dataIndex  Data index. newData  New value for data entry. Returns: true on success, false otherwise.

bool Ionflux::Tools::Node::setData (  unsigned int  dataIndex, const std::string &  newData )  [virtual]

Set data entry. Sets value of data entry with specified index. Note: This function tries to convert as best as possible if the argument type does not match the node data type. Parameters: dataIndex  Data index. newData  New value for data entry. Returns: true on success, false otherwise.

void Ionflux::Tools::Node::setDataType (  int  newDataType  )  [virtual]

Set data type. Sets the data type of this node. Valid values are set by one of the Node::NODE_DATA_* constants. Parameters: newDataType  Data type to be used for this node.

void Ionflux::Tools::Node::setID (  int  newID  )  [virtual]

Set ID. Sets the numerical ID of this node. Parameters: newID  Numerical ID of this node.

void Ionflux::Tools::Node::setIndexMode (  int  newIndexMode  )  [virtual]

Set child node indexing mode. Set the child node indexing mode. Use this to automatically create and maintain an index of child nodes, which may result in faster access times but will consume more memory. Valid values are set by one of the Node::INDEX_MODE_* constants. Parameters: newIndexMode  Child node indexing mode.

void Ionflux::Tools::Node::setManaged (  bool  newManaged  )

Set memory management flag. This controls whether memory allocated for this node should be managed by its parent node. Note: This is used internally by the implementation and should not, under normal circumstances, be explicitly called from the application level. Warning: Do not call this function explicitly! If you need control over the memory management mode, use addChild() with appropriate arguments instead. Calling this function explicitly may result in unexpected behavior, or worse. See also: addChild()

void Ionflux::Tools::Node::setName (  const std::string &  newName  )  [virtual]

Set Name. Sets the name of this node. Parameters: newName  Name of this node.

void Ionflux::Tools::Node::setParent (  Node *  newParent  )  [virtual]

Set parent Node. Sets the parent node of this node. Parameters: newParent  Pointer to parent node.

void Ionflux::Tools::Node::setUIDMode (  int  newUIDMode  )  [virtual]

Set child node UID assignment mode. Set the child node UID assignment mode. Use this to automatically assign IDs to child nodes created by addChild(). Valid values are set by one of the Node::UID_MODE_* constants. Parameters: newUIDMode  Child node UID assignment mode.

std::string Ionflux::Tools::Node::toConfig (  const std::string &  indent = "", unsigned int  level = 0 )

Get configuration file representation. Create a representation of the node (and its children) suitable for insertion into a config file, using the extended (nested) syntax. Note: The configuration file representation is human-readable and editable in any text editor. It may consist of multiple lines. Parameters: indent  Use this string to indent the lines of the string representation. level  The indentation level. Returns: Configuration file representation of the node.

void Ionflux::Tools::Node::traverse (  NodeDump *  target, int  order )  [virtual]

Traverse sub-tree. Traverse the sub-tree starting at this node, in the specified order. Parameters: target  Target to pass nodes to. order  Order of traversal.

bool Ionflux::Tools::Node::unpack (  const std::string &  serialized, unsigned int  blockStart, unsigned int  blockSize )  [virtual]

Unpack sub-tree. Unpack the sub-tree starting at this node. This will delete all data and remove all children currently in this node. Data extraction begins at 'blockStart' and at most 'blockSize' bytes will be used for unpacking nodes. If you pass 0 as the block size, the block size will be set to the size of the serialized input. Note: See misc/node-serialization.txt for a description of the serialization format. Parameters: serialized  Sub-Tree in serialized form. blockStart  Position in the serialized data where the block to be unpacked starts. blockSize  Size of the block to be unpacked. See also: serialize() Returns: true if the data is successfully unpacked, false otherwise.

unsigned int Ionflux::Tools::Node::unrefChild (  Node *  childNode  )  [protected, virtual]

Decrease child node reference count. Decreases the reference count for a child node by one. Note: If the reference count of a child node drops to zero, it will be removed from all indexes and, if managed by its parent node, deleted. Parameters: childNode  Pointer to a child node. Returns: Reference count for childNode (after decrement).

bool Ionflux::Tools::Node::validateChildIndex (  unsigned int  childIndex  )  [protected, virtual]

Validate child node index. Returns true if the child node index references a valid child node. Note: If the child node does not exist, but auto-create mode is set to true, the child node will be created. Parameters: childIndex  The child node index to be validated. Returns: true if a child node with specified index exists, false otherwise.

bool Ionflux::Tools::Node::validateDataIndex (  unsigned int  dataIndex  )  [protected, virtual]

Validate data index. Returns true if a data index references a valid data entry. Note: If the data entry does not exist, but auto-create mode is set to true, the data entry will be created. Parameters: dataIndex  The data index to be validated. Returns: true if a data entry with specified index exists, false otherwise.

---

Member Data Documentation

bool Ionflux::Tools::Node::autoCreate [protected]

Auto-creation mode. Whether to create requested child nodes and data entries on the fly if they do not already exist.

std::map<Node*, unsigned int> Ionflux::Tools::Node::childNodeRef [protected]

Child node reference counter.

std::vector<NodeInfo> Ionflux::Tools::Node::children [protected]

Vector of pointers to children.

int Ionflux::Tools::Node::dataType [protected]

Node data type.

std::vector<Node*> Ionflux::Tools::Node::idIndex [protected]

Index vector (TODO: Maybe reimplement this as a hash map).

const int Ionflux::Tools::Node::INDEX_MODE_NODE = 1 [static]

Indexing mode: Per node indexing.

const int Ionflux::Tools::Node::INDEX_MODE_NONE = 0 [static]

Indexing mode: Do not use indexing (default).

const int Ionflux::Tools::Node::INDEX_MODE_TREE = 2 [static]

Indexing mode: Per tree indexing.

int Ionflux::Tools::Node::indexMode [protected]

Indexing mode.

Ionflux::Tools::Reporter* Ionflux::Tools::Node::log [protected]

Console output/logging.

bool Ionflux::Tools::Node::managed [protected]

Memory management mode. If set to true, this indicates that memory allocated for this node is managed by its parent node.

const unsigned int Ionflux::Tools::Node::MAX_ID_INDEX_SIZE = 268435456L [static]

Maximum size of ID index.

int Ionflux::Tools::Node::maxUID [protected]

Maximum UID assigned by this node.

std::map<std::string, Node*> Ionflux::Tools::Node::nameIndex [protected]

Index map.

const int Ionflux::Tools::Node::NODE_DATA_BLOB = 0 [static]

Node data type: Blob (Binary large object, including byte strings).

const int Ionflux::Tools::Node::NODE_DATA_DOUBLE = 2 [static]

Node data type: Double.

const int Ionflux::Tools::Node::NODE_DATA_INT = 1 [static]

Node data type: Integer.

const unsigned int Ionflux::Tools::Node::NODE_HEADER_SIZE = 53 [static]

Size of serialized node header in bytes.

const int Ionflux::Tools::Node::NODE_ID_NOT_SET = -1 [static]

Node ID: Not set.

std::vector<std::string> Ionflux::Tools::Node::nodeData [protected]

Data vector.

int Ionflux::Tools::Node::nodeID [protected]

Numerical ID of this node.

std::string Ionflux::Tools::Node::nodeName [protected]

Name of this node.

Node* Ionflux::Tools::Node::parent [protected]

Parent node.

const int Ionflux::Tools::Node::TRAVERSAL_INORDER = 0 [static]

Traversal order: Inorder.

const int Ionflux::Tools::Node::TRAVERSAL_POSTORDER = 2 [static]

Traversal order: Postorder.

const int Ionflux::Tools::Node::TRAVERSAL_PREORDER = 1 [static]

Traversal order: Preorder.

const int Ionflux::Tools::Node::UID_MODE_NODE = 1 [static]

Child node UID assignment mode: Assign ID unique to this node.

const int Ionflux::Tools::Node::UID_MODE_NONE = 0 [static]

Child node UID assignment mode: Do not assign UID (default).

const int Ionflux::Tools::Node::UID_MODE_TREE = 2 [static]

Child node UID assignment mode: Assign ID unique to the tree.

int Ionflux::Tools::Node::uidMode [protected]

Child node UID assignment mode.

---

The documentation for this class was generated from the following files:

• Node.hpp
• Node.cpp

---
