Ionflux::Tools::Matrix3 Class Reference
[Vector mathematics]

Matrix (R3 x R3). More...

#include <Matrix3.hpp>

Inheritance diagram for Ionflux::Tools::Matrix3:

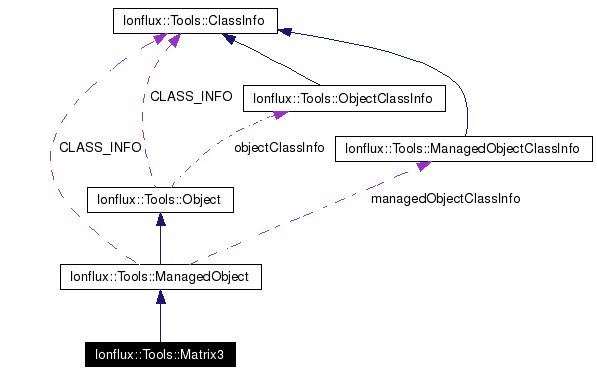

[legend]Collaboration diagram for Ionflux::Tools::Matrix3:

[legend]List of all members.

Public Member Functions
	Matrix3 ()
	Constructor.
	Matrix3 (double initX11, double initX12, double initX13, double initX21, double initX22, double initX23, double initX31, double initX32, double initX33)
	Constructor.
	Matrix3 (const Matrix3 &initMat)
	Constructor.
	Matrix3 (const Vector3 &initC1, const Vector3 &initC2, const Vector3 &initC3)
	Constructor.
	Matrix3 (const double *initEntry)
	Constructor.
virtual	~Matrix3 ()
	Destructor.
virtual void	setEntries (double newX11, double newX12, double newX13, double newX21, double newX22, double newX23, double newX31, double newX32, double newX33)
	Set entries.
virtual void	setEntries (const double *newEntry)
	Set entries.
virtual void	setColumns (const Vector3 &newC1, const Vector3 &newC2, const Vector3 &newC3)
	Set column vectors.
virtual void	setRows (const Vector3 &newR1, const Vector3 &newR2, const Vector3 &newR3)
	Set row vectors.
virtual void	setEntry (int rowIndex, int colIndex, double newEntry)
	Set entry.
virtual void	setColumn (int colIndex, const Vector3 &newCol)
	Set column vector.
virtual void	setRow (int rowIndex, const Vector3 &newRow)
	Set row vector.
virtual Vector3	getColumn (int colIndex) const
	Get column vector.
virtual Vector3	getRow (int rowIndex) const
	Get row vector.
virtual double	getEntry (int rowIndex, int colIndex) const
	Get entry.
virtual Matrix3 &	operator= (const Matrix3 &newMat)
	Assignment operator.
virtual Matrix3	operator+ (const Matrix3 &otherMat) const
	Add operator.
virtual Matrix3	operator- (const Matrix3 &otherMat) const
	Subtract operator.
virtual Matrix3	operator * (const Matrix3 &otherMat) const
	Multiply operator.
virtual Matrix3 &	operator+= (const Matrix3 &otherMat)
	Add operator.
virtual Matrix3 &	operator-= (const Matrix3 &otherMat)
	Subtract operator.
virtual Matrix3 &	operator *= (const Matrix3 &otherMat)
	Multiply operator.
virtual Matrix3 &	operator *= (double a)
	Multiply operator.
virtual Vector3	operator * (const Vector3 &argVec) const
	Multiply operator.
virtual Matrix3	operator * (double a) const
	Multiply operator.
virtual Vector3	operator[] (int rowIndex) const
	Subscript operator.
virtual std::string	toString () const
	Create string representation.
virtual double	getSubDet (int rowIndex, int colIndex) const
	Calculate subdeterminant.
virtual double	getDet () const
	Calculate determinant.
virtual Matrix3	getAdjoint () const
	Get adjoint.
virtual Matrix3 &	transpose ()
	Transpose.
virtual Matrix3 &	invert ()
	Invert.
virtual Matrix3 &	clear ()
	Clear.
virtual Matrix3 &	setIdentity ()
	Set identity matrix.
virtual Matrix3 &	setRotateX (double phi)
	Set rotation matrix (X).
virtual Matrix3 &	setRotateY (double phi)
	Set rotation matrix (X).
virtual Matrix3 &	setRotateZ (double phi)
	Set rotation matrix (Z).
virtual Matrix3 &	setScale (double scaleX, double scaleY, double scaleZ)
	Set scale matrix.
virtual void	setX11 (double newX11)
	Set x11 entry.
virtual void	setX12 (double newX12)
	Set x13 entry.
virtual void	setX13 (double newX13)
	Set x13 entry.
virtual void	setX21 (double newX21)
	Set x21 entry.
virtual void	setX22 (double newX22)
	Set x22 entry.
virtual void	setX23 (double newX23)
	Set x23 entry.
virtual void	setX31 (double newX31)
	Set x31 entry.
virtual void	setX32 (double newX32)
	Set x32 entry.
virtual void	setX33 (double newX33)
	Set x33 entry.
virtual double	getX11 () const
	Get x11 entry.
virtual double	getX12 () const
	Get x13 entry.
virtual double	getX13 () const
	Get x13 entry.
virtual double	getX21 () const
	Get x21 entry.
virtual double	getX22 () const
	Get x22 entry.
virtual double	getX23 () const
	Get x23 entry.
virtual double	getX31 () const
	Get x31 entry.
virtual double	getX32 () const
	Get x32 entry.
virtual double	getX33 () const
	Get x33 entry.
Protected Attributes
double *	entry
	Entries.

---

Detailed Description

Matrix (R3 x R3).

A matrix in three dimensional space.

---

Constructor & Destructor Documentation

Ionflux::Tools::Matrix3::Matrix3 (   )

Constructor. Construct new Matrix3 object.

Ionflux::Tools::Matrix3::Matrix3 (  double  initX11, double  initX12, double  initX13, double  initX21, double  initX22, double  initX23, double  initX31, double  initX32, double  initX33 )

Constructor. Construct new Matrix3 object. Parameters: initX11  x11 entry. initX12  x12 entry. initX13  x13 entry. initX21  x21 entry. initX22  x22 entry. initX23  x23 entry. initX31  x31 entry. initX32  x32 entry. initX33  x33 entry.

Ionflux::Tools::Matrix3::Matrix3 (  const Matrix3 &  initMat  )

Constructor. Construct new Matrix3 object. Parameters: initMat  Matrix (R3 x R3).

Ionflux::Tools::Matrix3::Matrix3 (  const Vector3 &  initC1, const Vector3 &  initC2, const Vector3 &  initC3 )

Constructor. Construct new Matrix3 object. Parameters: initC1  First column vector. initC2  Second column vector. initC3  Third column vector.

Ionflux::Tools::Matrix3::Matrix3 (  const double *  initEntry  )

Constructor. Construct new Matrix3 object. Parameters: initEntry  Array of matrix entries.

Ionflux::Tools::Matrix3::~Matrix3 (   )  [virtual]

Destructor. Destruct Matrix3 object.

---

Member Function Documentation

Matrix3 & Ionflux::Tools::Matrix3::clear (   )  [virtual]

Clear. Clear the matrix (set all entries to zero). Returns: Result of the operation.

Matrix3 Ionflux::Tools::Matrix3::getAdjoint (   )  const [virtual]

Get adjoint. Get the adjoint of the matrix. Returns: Adjoint matrix.

Vector3 Ionflux::Tools::Matrix3::getColumn (  int  colIndex  )  const [virtual]

Get column vector. Get the specified column vector of the matrix. Note: If colIndex is out of range, this function returns the null vector. Parameters: colIndex  Column index (0...2). Returns: Column vector.

double Ionflux::Tools::Matrix3::getDet (   )  const [virtual]

Calculate determinant. Calculate the determinant of the matrix. Returns: Determinant.

double Ionflux::Tools::Matrix3::getEntry (  int  rowIndex, int  colIndex )  const [virtual]

Get entry. Get the specified entry of the matrix. Note: If either rowIndex or colIndex is out of range, this function does nothing. Parameters: rowIndex  Row index (0...2). colIndex  Column index (0...2). Returns: Matrix entry.

Vector3 Ionflux::Tools::Matrix3::getRow (  int  rowIndex  )  const [virtual]

Get row vector. Get the specified row vector of the matrix. Note: If rowIndex is out of range, this function returns the null vector. Parameters: rowIndex  Row index (0...2). Returns: Row vector.

double Ionflux::Tools::Matrix3::getSubDet (  int  rowIndex, int  colIndex )  const [virtual]

Calculate subdeterminant. Calculate a subdeterminant of the matrix. A subdeterminant is obtained by calculating the determinant of the matrix resulting from removing a row and a column from the original matrix. Parameters: rowIndex  Row index of the row to be removed (0...2). colIndex  Column index of the column to be removed (0...2). Returns: Subdeterminant.

double Ionflux::Tools::Matrix3::getX11 (   )  const [virtual]

Get x11 entry. Returns: Current value of x11 entry.

double Ionflux::Tools::Matrix3::getX12 (   )  const [virtual]

Get x13 entry. Returns: Current value of x13 entry.

double Ionflux::Tools::Matrix3::getX13 (   )  const [virtual]

Get x13 entry. Returns: Current value of x13 entry.

double Ionflux::Tools::Matrix3::getX21 (   )  const [virtual]

Get x21 entry. Returns: Current value of x21 entry.

double Ionflux::Tools::Matrix3::getX22 (   )  const [virtual]

Get x22 entry. Returns: Current value of x22 entry.

double Ionflux::Tools::Matrix3::getX23 (   )  const [virtual]

Get x23 entry. Returns: Current value of x23 entry.

double Ionflux::Tools::Matrix3::getX31 (   )  const [virtual]

Get x31 entry. Returns: Current value of x31 entry.

double Ionflux::Tools::Matrix3::getX32 (   )  const [virtual]

Get x32 entry. Returns: Current value of x32 entry.

double Ionflux::Tools::Matrix3::getX33 (   )  const [virtual]

Get x33 entry. Returns: Current value of x33 entry.

Matrix3 & Ionflux::Tools::Matrix3::invert (   )  [virtual]

Invert. Invert the matrix. Returns: Result of the operation.

Matrix3 Ionflux::Tools::Matrix3::operator * (  double  a  )  const [virtual]

Multiply operator. Calculate the product of the matrix and a scalar. Parameters: a  Scalar. Returns: Result of the operation.

Vector3 Ionflux::Tools::Matrix3::operator * (  const Vector3 &  argVec  )  const [virtual]

Multiply operator. Apply a matrix to a vector. Parameters: argVec  Vector (R3). Returns: Result of the operation.

Matrix3 Ionflux::Tools::Matrix3::operator * (  const Matrix3 &  otherMat  )  const [virtual]

Multiply operator. Calculate the product of two matrices. Parameters: otherMat  Matrix (R3 x R3). Returns: Result of the operation.

Matrix3 & Ionflux::Tools::Matrix3::operator *= (  double  a  )  [virtual]

Multiply operator. Calculate the product of the matrix and a scalar. Parameters: a  Scalar. Returns: Result of the operation.

Matrix3 & Ionflux::Tools::Matrix3::operator *= (  const Matrix3 &  otherMat  )  [virtual]

Multiply operator. Calculate the product of two matrices. Parameters: otherMat  Matrix (R3 x R3). Returns: Result of the operation.

Matrix3 Ionflux::Tools::Matrix3::operator+ (  const Matrix3 &  otherMat  )  const [virtual]

Add operator. Add one matrix to another matrix. Parameters: otherMat  Matrix (R3 x R3). Returns: Result of the operation.

Matrix3 & Ionflux::Tools::Matrix3::operator+= (  const Matrix3 &  otherMat  )  [virtual]

Add operator. Add one matrix to another matrix. Parameters: otherMat  Matrix (R3 x R3). Returns: Result of the operation.

Matrix3 Ionflux::Tools::Matrix3::operator- (  const Matrix3 &  otherMat  )  const [virtual]

Subtract operator. Subtract one matrix from another matrix. Parameters: otherMat  Matrix (R3 x R3). Returns: Result of the operation.

Matrix3 & Ionflux::Tools::Matrix3::operator-= (  const Matrix3 &  otherMat  )  [virtual]

Subtract operator. Subtract one matrix from another matrix. Parameters: otherMat  Matrix (R3 x R3). Returns: Result of the operation.

Matrix3 & Ionflux::Tools::Matrix3::operator= (  const Matrix3 &  newMat  )  [virtual]

Assignment operator. Assign one matrix to another matrix. Parameters: newMat  Matrix (R3 x R3). Returns: Result of the operation. Reimplemented in Ionflux::Tools::Cairo::Matrix.

Vector3 Ionflux::Tools::Matrix3::operator[] (  int  rowIndex  )  const [virtual]

Subscript operator. Access a row vector of the matrix. Note: If rowIndex is out of range, the function returns the null vector. Parameters: rowIndex  Row index (0...2). Returns: Row vector.

void Ionflux::Tools::Matrix3::setColumn (  int  colIndex, const Vector3 &  newCol )  [virtual]

Set column vector. Set the specified column vector of the matrix. Note: If colIndex is out of range, this function does nothing. Parameters: colIndex  Column index (0...2). newCol  Column vector.

void Ionflux::Tools::Matrix3::setColumns (  const Vector3 &  newC1, const Vector3 &  newC2, const Vector3 &  newC3 )  [virtual]

Set column vectors. Set the column vectors of the matrix. Parameters: newC1  First column vector. newC2  Second column vector. newC3  Third column vector.

void Ionflux::Tools::Matrix3::setEntries (  const double *  newEntry  )  [virtual]

Set entries. Set the entries of the matrix. Note: newEntry is expected to have a size of at least 9. Parameters: newEntry  Array of entries.

void Ionflux::Tools::Matrix3::setEntries (  double  newX11, double  newX12, double  newX13, double  newX21, double  newX22, double  newX23, double  newX31, double  newX32, double  newX33 )  [virtual]

Set entries. Set the entries of the matrix. Parameters: newX11  x11 entry. newX12  x12 entry. newX13  x13 entry. newX21  x21 entry. newX22  x22 entry. newX23  x23 entry. newX31  x31 entry. newX32  x32 entry. newX33  x33 entry.

void Ionflux::Tools::Matrix3::setEntry (  int  rowIndex, int  colIndex, double  newEntry )  [virtual]

Set entry. Set the specified entry of the matrix. Note: If either rowIndex or colIndex is out of range, this function does nothing. Parameters: rowIndex  Row index (0...2). colIndex  Column index (0...2). newEntry  New value of entry.

Matrix3 & Ionflux::Tools::Matrix3::setIdentity (   )  [virtual]

Set identity matrix. Set the matrix to the identity matrix. Returns: Result of the operation.

Matrix3 & Ionflux::Tools::Matrix3::setRotateX (  double  phi  )  [virtual]

Set rotation matrix (X). Set the matrix to a rotation matrix around the X axis. Parameters: phi  Rotation angle (rad). Returns: Result of the operation.

Matrix3 & Ionflux::Tools::Matrix3::setRotateY (  double  phi  )  [virtual]

Set rotation matrix (X). Set the matrix to a rotation matrix around the Y axis. Parameters: phi  Rotation angle (rad). Returns: Result of the operation.

Matrix3 & Ionflux::Tools::Matrix3::setRotateZ (  double  phi  )  [virtual]

Set rotation matrix (Z). Set the matrix to a rotation matrix around the Z axis. Parameters: phi  Rotation angle (rad). Returns: Result of the operation.

void Ionflux::Tools::Matrix3::setRow (  int  rowIndex, const Vector3 &  newRow )  [virtual]

Set row vector. Set the specified row vector of the matrix. Note: If rowIndex is out of range, this function does nothing. Parameters: rowIndex  Row index (0...2). newRow  Row vector.

void Ionflux::Tools::Matrix3::setRows (  const Vector3 &  newR1, const Vector3 &  newR2, const Vector3 &  newR3 )  [virtual]

Set row vectors. Set the row vectors of the matrix. Parameters: newR1  First row vector. newR2  Second row vector. newR3  Third row vector.

Matrix3 & Ionflux::Tools::Matrix3::setScale (  double  scaleX, double  scaleY, double  scaleZ )  [virtual]

Set scale matrix. Set the matrix to a scale matrix. Parameters: scaleX  Scale factor (X). scaleY  Scale factor (Y). scaleZ  Scale factor (Z). Returns: Result of the operation.

void Ionflux::Tools::Matrix3::setX11 (  double  newX11  )  [virtual]

Set x11 entry. Set new value of x11 entry. Parameters: newX11  New value of x11 entry.

void Ionflux::Tools::Matrix3::setX12 (  double  newX12  )  [virtual]

Set x13 entry. Set new value of x13 entry. Parameters: newX12  New value of x13 entry.

void Ionflux::Tools::Matrix3::setX13 (  double  newX13  )  [virtual]

Set x13 entry. Set new value of x13 entry. Parameters: newX13  New value of x13 entry.

void Ionflux::Tools::Matrix3::setX21 (  double  newX21  )  [virtual]

Set x21 entry. Set new value of x21 entry. Parameters: newX21  New value of x21 entry.

void Ionflux::Tools::Matrix3::setX22 (  double  newX22  )  [virtual]

Set x22 entry. Set new value of x22 entry. Parameters: newX22  New value of x22 entry.

void Ionflux::Tools::Matrix3::setX23 (  double  newX23  )  [virtual]

Set x23 entry. Set new value of x23 entry. Parameters: newX23  New value of x23 entry.

void Ionflux::Tools::Matrix3::setX31 (  double  newX31  )  [virtual]

Set x31 entry. Set new value of x31 entry. Parameters: newX31  New value of x31 entry.

void Ionflux::Tools::Matrix3::setX32 (  double  newX32  )  [virtual]

Set x32 entry. Set new value of x32 entry. Parameters: newX32  New value of x32 entry.

void Ionflux::Tools::Matrix3::setX33 (  double  newX33  )  [virtual]

Set x33 entry. Set new value of x33 entry. Parameters: newX33  New value of x33 entry.

std::string Ionflux::Tools::Matrix3::toString (   )  const [virtual]

Create string representation. Create a string representation of the matrix (i.e. "[<R1>,<R2>,<R3>]", R1...R3 being the string representations of the row vectors). Returns: String representation.

Matrix3 & Ionflux::Tools::Matrix3::transpose (   )  [virtual]

Transpose. Transpose the matrix. Returns: Result of the operation.

---

Member Data Documentation

double* Ionflux::Tools::Matrix3::entry [protected]

Entries.

---

The documentation for this class was generated from the following files:

• Matrix3.hpp
• Matrix3.cpp

---
