Ionflux::Tools::Vector3 Class Reference
[Vector mathematics]

Vector (R3). More...

#include <Vector3.hpp>

Inheritance diagram for Ionflux::Tools::Vector3:

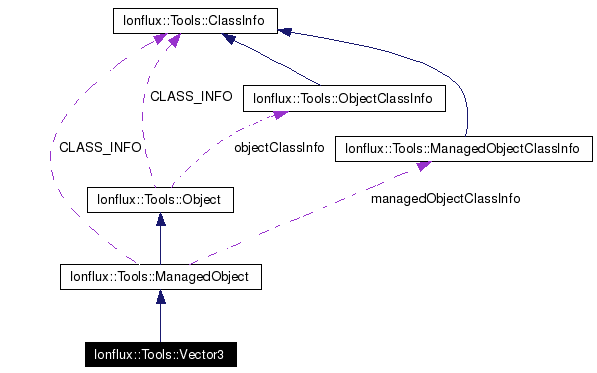

[legend]Collaboration diagram for Ionflux::Tools::Vector3:

[legend]List of all members.

Public Member Functions
	Vector3 ()
	Constructor.
	Vector3 (double initX1, double initX2, double initX3)
	Constructor.
	Vector3 (const Vector3 &initVec)
	Constructor.
	Vector3 (const double *initComp)
	Constructor.
virtual	~Vector3 ()
	Destructor.
virtual void	setComps (double newX1, double newX2, double newX3)
	Set components.
virtual void	setComps (const double *newComp)
	Set components.
virtual void	setComp (int compIndex, double newComp)
	Set component.
virtual std::string	toString () const
	Create string representation.
virtual Vector3 &	operator= (const Vector3 &newVec)
	Assignment operator.
virtual Vector3	operator+ (const Vector3 &otherVec) const
	Add operator.
virtual Vector3	operator- (const Vector3 &otherVec) const
	Subtract operator.
virtual Vector3 &	operator+= (const Vector3 &otherVec)
	Add operator.
virtual Vector3 &	operator-= (const Vector3 &otherVec)
	Subtract operator.
virtual double	operator * (const Vector3 &otherVec) const
	Multiply operator.
virtual Vector3 &	operator *= (double a)
	Multiply operator.
virtual Vector3	operator * (double a) const
	Multiply operator.
virtual double	operator[] (int compIndex) const
	Subscript operator.
virtual void	setX1 (double newX1)
	Set x1 component.
virtual void	setX2 (double newX2)
	Set x2 component.
virtual void	setX3 (double newX3)
	Set x3 component.
virtual double	getX1 () const
	Get x1 component.
virtual double	getX2 () const
	Get x2 component.
virtual double	getX3 () const
	Get x3 component.
Protected Attributes
double *	comp
	Components.

---

Detailed Description

Vector (R3).

A vector in three dimensional space.

---

Constructor & Destructor Documentation

Ionflux::Tools::Vector3::Vector3 (   )

Constructor. Construct new Vector3 object.

Ionflux::Tools::Vector3::Vector3 (  double  initX1, double  initX2, double  initX3 )

Constructor. Construct new Vector3 object. Parameters: initX1  x1 component. initX2  x2 component. initX3  x3 component.

Ionflux::Tools::Vector3::Vector3 (  const Vector3 &  initVec  )

Constructor. Construct new Vector3 object. Parameters: initVec  Vector (R3).

Ionflux::Tools::Vector3::Vector3 (  const double *  initComp  )

Constructor. Construct new Vector3 object. Note: initComp is expected to have a size of at least 3. Parameters: initComp  Array of vector components.

Ionflux::Tools::Vector3::~Vector3 (   )  [virtual]

Destructor. Destruct Vector3 object.

---

Member Function Documentation

double Ionflux::Tools::Vector3::getX1 (   )  const [virtual]

Get x1 component. Returns: Current value of x1 component.

double Ionflux::Tools::Vector3::getX2 (   )  const [virtual]

Get x2 component. Returns: Current value of x2 component.

double Ionflux::Tools::Vector3::getX3 (   )  const [virtual]

Get x3 component. Returns: Current value of x3 component.

Vector3 Ionflux::Tools::Vector3::operator * (  double  a  )  const [virtual]

Multiply operator. Calculate the product of the vector and a scalar. Parameters: a  Scalar.

double Ionflux::Tools::Vector3::operator * (  const Vector3 &  otherVec  )  const [virtual]

Multiply operator. Calculate the scalar product of two vectors. Parameters: otherVec  Vector (R3).

Vector3 & Ionflux::Tools::Vector3::operator *= (  double  a  )  [virtual]

Multiply operator. Calculate the product of the vector and a scalar. Parameters: a  Scalar.

Vector3 Ionflux::Tools::Vector3::operator+ (  const Vector3 &  otherVec  )  const [virtual]

Add operator. Add one vector to another vector. Parameters: otherVec  Vector (R3).

Vector3 & Ionflux::Tools::Vector3::operator+= (  const Vector3 &  otherVec  )  [virtual]

Add operator. Add one vector to another vector. Parameters: otherVec  Vector (R3).

Vector3 Ionflux::Tools::Vector3::operator- (  const Vector3 &  otherVec  )  const [virtual]

Subtract operator. Subtract one vector from another vector. Parameters: otherVec  Vector (R3).

Vector3 & Ionflux::Tools::Vector3::operator-= (  const Vector3 &  otherVec  )  [virtual]

Subtract operator. Subtract one vector from another vector. Parameters: otherVec  Vector (R3).

Vector3 & Ionflux::Tools::Vector3::operator= (  const Vector3 &  newVec  )  [virtual]

Assignment operator. Assign one vector to another vector. Parameters: newVec  Vector (R3).

double Ionflux::Tools::Vector3::operator[] (  int  compIndex  )  const [virtual]

Subscript operator. Access a component of the vector. Note: If compIndex is out of range, the function returns 0. Parameters: compIndex  Component index (0...2).

void Ionflux::Tools::Vector3::setComp (  int  compIndex, double  newComp )  [virtual]

Set component. Set the specified component of the vector. Note: If compIndex is out of range, this function does nothing. Parameters: compIndex  Component index (0...2) newComp  New value of component.

void Ionflux::Tools::Vector3::setComps (  const double *  newComp  )  [virtual]

Set components. Set the components of the vector. Note: newComp is expected to have a size of at least 3. Parameters: newComp  Component array.

void Ionflux::Tools::Vector3::setComps (  double  newX1, double  newX2, double  newX3 )  [virtual]

Set components. Set the components of the vector. Parameters: newX1  x1 component. newX2  x2 component. newX3  x3 component.

void Ionflux::Tools::Vector3::setX1 (  double  newX1  )  [virtual]

Set x1 component. Set new value of x1 component. Parameters: newX1  New value of x1 component.

void Ionflux::Tools::Vector3::setX2 (  double  newX2  )  [virtual]

Set x2 component. Set new value of x2 component. Parameters: newX2  New value of x2 component.

void Ionflux::Tools::Vector3::setX3 (  double  newX3  )  [virtual]

Set x3 component. Set new value of x3 component. Parameters: newX3  New value of x3 component.

std::string Ionflux::Tools::Vector3::toString (   )  const [virtual]

Create string representation. Create a string representation of the vector (i.e. "(<x1>,<x2>,<x3>))").

---

Member Data Documentation

double* Ionflux::Tools::Vector3::comp [protected]

Components.

---

The documentation for this class was generated from the following files:

• Vector3.hpp
• Vector3.cpp

---
