Ionflux::Tools::TCPAuthServer Class Reference
[Network interface]

Authenticated TCP server. More...

#include <TCPAuthServer.hpp>

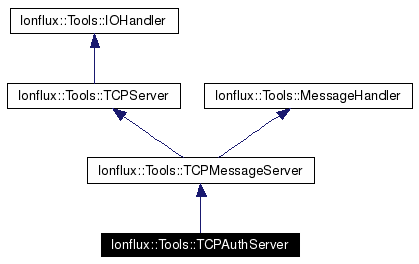

Inheritance diagram for Ionflux::Tools::TCPAuthServer:

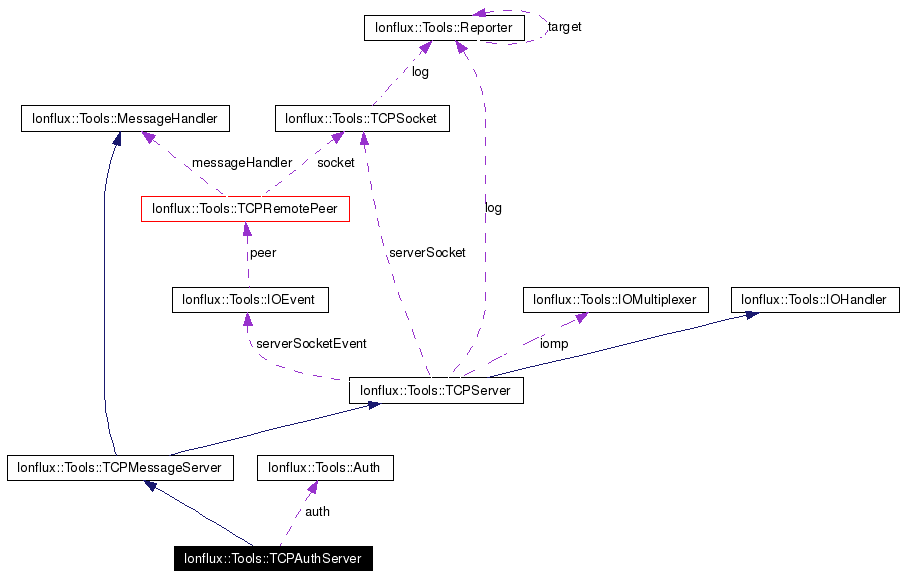

[legend]Collaboration diagram for Ionflux::Tools::TCPAuthServer:


Public Member Functions
	TCPAuthServer ()
	Constructor.
	TCPAuthServer (const std::string &initAuthFileName)
	Constructor.
virtual	~TCPAuthServer ()
	Destructor.
virtual void	onMessage (TCPRemotePeer &peer)
	Event handler for received messages.
virtual void	onInvalidMessage (TCPRemotePeer &peer)
	Event handler for invalid messages.
virtual void	broadcast (const std::string &bytes)
	Broadcast bytes.
virtual void	setAuth (Auth *newAuth)
	Set authentication facility.
virtual void	setAuthFileName (const std::string &newAuthFileName)
	Set authentication file name.
virtual void	setCurrentMsgID (unsigned int newCurrentMsgID)
	Set current Message ID.
virtual Auth *	getAuth ()
	Get authentication facility.
virtual std::string	getAuthFileName ()
	Get authentication file name.
virtual unsigned int	getCurrentMsgID ()
	Get current Message ID.
Static Public Attributes
static const std::string	MAGIC_WORD = "IFTA"
	Magic word.
static const unsigned int	AUTH_VERSION = 0x000001L
	Protocol version.
static const unsigned int	AUTH_VERSION_UPPER = 0x000001L
	Protocol version (upper boundary).
static const unsigned int	AUTH_VERSION_LOWER = 0x000001L
	Protocol version (lower boundary).
static const int	MSGID_HELLO = 101
	Message type ID: HELLO.
static const int	MSGID_WELCOME = 201
	Message type ID: WELCOME.
static const int	MSGID_AUTH = 102
	Message type ID: AUTH.
static const int	MSGID_AUTH_OK = 202
	Message type ID: AUTH_OK.
static const int	MSGID_AUTH_FAILED = 401
	Message type ID: AUTH_FAILED.
static const int	PS_WAIT_HELLO = 1
	Protocol state: Wait for HELLO.
static const int	PS_WAIT_AUTH = 2
	Protocol state: Wait for AUTH.
static const int	PS_AUTH_OK = 3
	Protocol state: Authentication succeeded.
Protected Member Functions
virtual void	onConnect (TCPRemotePeer &client)
	Event handler for new connections.
virtual void	onAuthMessage (TCPRemotePeer &peer)
	Event handler for authenticated messages.
virtual void	onAuthOK (TCPRemotePeer &peer)
	Event handler for successful authentication.
virtual void	onAuthFailed (TCPRemotePeer &peer)
	Event handler for failed authentication.
Protected Attributes
Auth *	auth
	Authentication facility.
std::string	authFileName
	Authentication file name.
unsigned int	currentMsgID
	Current Message ID.
MTRand *	randomizer
	Randomizer.

Detailed Description

Authenticated TCP server.

A Message based TCP server supporting a simple client authentication protocol.

To define your own protocol on top of an authenticated connection, override the TCPAuthServer::onAuthMessage() function. The TCPAuthServer will handle all the rest for you. If you want to define additional protocol states for your own protocol, the associated values must be of the form TCPAuthServer::PS_AUTH_OK + n, where n is a positive integer.

See misc/ifta.txt for a specification of the authentication protocol.

Constructor & Destructor Documentation

Ionflux::Tools::TCPAuthServer::TCPAuthServer ( )

Constructor.
Construct new TCPAuthServer object.

Ionflux::Tools::TCPAuthServer::TCPAuthServer ( const std::string & initAuthFileName )

Constructor.
Construct new TCPAuthServer object.

Parameters:

initAuthFileName Authentication file name.

Ionflux::Tools::TCPAuthServer::~TCPAuthServer ( ) [virtual]

Destructor.
Destruct TCPAuthServer object.

Member Function Documentation

void Ionflux::Tools::TCPAuthServer::broadcast ( const std::string & bytes ) [virtual]

Broadcast bytes.
Sends the specified byte string to all connected peers.

Parameters:

bytes The bytes to broadcast.

Reimplemented from Ionflux::Tools::TCPMessageServer.

Auth * Ionflux::Tools::TCPAuthServer::getAuth ( ) [virtual]

Get authentication facility.

Returns:
Pointer to the authentication facility used by this server.

std::string Ionflux::Tools::TCPAuthServer::getAuthFileName ( ) [virtual]

Get authentication file name.

Returns:
Name of the authentication file, or an empty string if the authentication file is not set.

unsigned int Ionflux::Tools::TCPAuthServer::getCurrentMsgID ( ) [virtual]

Get current Message ID.

Returns:
Current message ID.

void Ionflux::Tools::TCPAuthServer::onAuthFailed ( TCPRemotePeer & peer ) [protected, virtual]

Event handler for failed authentication.
This is called when authentication with a peer has failed.

Note:
Override this to implement your own authentication failure handling.

Parameters:

peer The peer which caused the event.

void Ionflux::Tools::TCPAuthServer::onAuthMessage ( TCPRemotePeer & peer ) [protected, virtual]

Event handler for authenticated messages.
This is called whenever a message is received from an authenticated peer. The received message will be available from TCPRemotePeer::getMessage().

Note:
Override this to implement your own authenticated message handling.

Parameters:

peer The peer which caused the event.

void Ionflux::Tools::TCPAuthServer::onAuthOK ( TCPRemotePeer & peer ) [protected, virtual]

Event handler for successful authentication.
This is called when authentication with a peer has succeeded.

Note:
Override this to implement your own authentication success handling.

Parameters:

peer The peer which caused the event.

void Ionflux::Tools::TCPAuthServer::onConnect ( TCPRemotePeer & client ) [protected, virtual]

Event handler for new connections.
This is called by the main loop whenever a new client connects.

Note:
Override this to implement your own connection handling.

Parameters:

client The client which caused the event.

Reimplemented from Ionflux::Tools::TCPMessageServer.

void Ionflux::Tools::TCPAuthServer::onInvalidMessage ( TCPRemotePeer & peer ) [virtual]

Event handler for invalid messages.
This is called whenever an invalid message is received from a peer.

Note:
Override this to implement your own invalid message handling.

Parameters:

peer The peer which caused the event.

Reimplemented from Ionflux::Tools::TCPMessageServer.

void Ionflux::Tools::TCPAuthServer::onMessage ( TCPRemotePeer & peer ) [virtual]

Event handler for received messages.
This is called whenever a valid message is received from a peer. The received message will be available from TCPRemotePeer::getMessage().

Note:
Override this to implement your own message handling.

Parameters:

peer The peer which caused the event.

Reimplemented from Ionflux::Tools::TCPMessageServer.

void Ionflux::Tools::TCPAuthServer::setAuth ( Auth * newAuth ) [virtual]

Set authentication facility.
Set new value of authentication facility.

Parameters:

newAuth New value of authentication facility.

void Ionflux::Tools::TCPAuthServer::setAuthFileName ( const std::string & newAuthFileName ) [virtual]

Set authentication file name.
Set new value of authentication file name.

Parameters:

newAuthFileName New value of authentication file name.

void Ionflux::Tools::TCPAuthServer::setCurrentMsgID ( unsigned int newCurrentMsgID ) [virtual]

Set current Message ID.
Set new value of current Message ID.

Parameters:

newCurrentMsgID New value of current Message ID.

Member Data Documentation

Auth* Ionflux::Tools::TCPAuthServer::auth [protected]

Authentication facility.

const unsigned int Ionflux::Tools::TCPAuthServer::AUTH_VERSION = 0x000001L [static]

Protocol version.

const unsigned int Ionflux::Tools::TCPAuthServer::AUTH_VERSION_LOWER = 0x000001L [static]

Protocol version (lower boundary).

const unsigned int Ionflux::Tools::TCPAuthServer::AUTH_VERSION_UPPER = 0x000001L [static]

Protocol version (upper boundary).

std::string Ionflux::Tools::TCPAuthServer::authFileName [protected]

Authentication file name.

unsigned int Ionflux::Tools::TCPAuthServer::currentMsgID [protected]

Current Message ID.

const std::string Ionflux::Tools::TCPAuthServer::MAGIC_WORD = "IFTA" [static]

Magic word.

const int Ionflux::Tools::TCPAuthServer::MSGID_AUTH = 102 [static]

Message type ID: AUTH.

const int Ionflux::Tools::TCPAuthServer::MSGID_AUTH_FAILED = 401 [static]

Message type ID: AUTH_FAILED.

const int Ionflux::Tools::TCPAuthServer::MSGID_AUTH_OK = 202 [static]

Message type ID: AUTH_OK.

const int Ionflux::Tools::TCPAuthServer::MSGID_HELLO = 101 [static]

Message type ID: HELLO.

const int Ionflux::Tools::TCPAuthServer::MSGID_WELCOME = 201 [static]

Message type ID: WELCOME.

const int Ionflux::Tools::TCPAuthServer::PS_AUTH_OK = 3 [static]

Protocol state: Authentication succeeded.

const int Ionflux::Tools::TCPAuthServer::PS_WAIT_AUTH = 2 [static]

Protocol state: Wait for AUTH.

const int Ionflux::Tools::TCPAuthServer::PS_WAIT_HELLO = 1 [static]

Protocol state: Wait for HELLO.

MTRand* Ionflux::Tools::TCPAuthServer::randomizer [protected]

Randomizer.

The documentation for this class was generated from the following files:

Generated on Tue Mar 14 21:10:39 2006 for Ionflux Tools Class Library (iftools) by

1.4.6
