Ionflux::Tools::TCPAuthClient Class Reference
[Network interface]

Authenticated TCP client. More...

#include <TCPAuthClient.hpp>

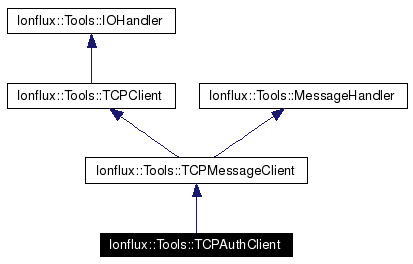

Inheritance diagram for Ionflux::Tools::TCPAuthClient:

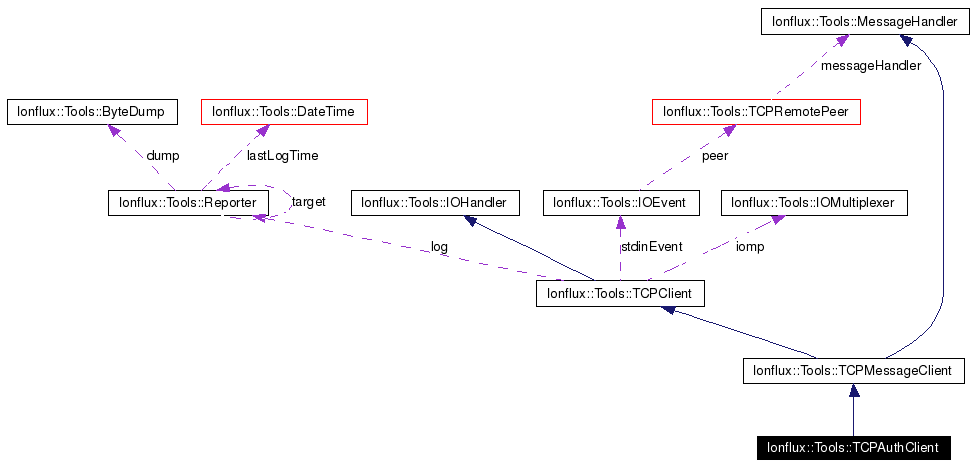

[legend]Collaboration diagram for Ionflux::Tools::TCPAuthClient:


Public Member Functions
	TCPAuthClient ()
	Constructor.
	TCPAuthClient (bool initInteractive)
	Constructor.
	TCPAuthClient (const std::string &initUsername, const std::string &initPassword, bool initInteractive)
	Constructor.
virtual	~TCPAuthClient ()
	Destructor.
virtual void	onMessage (TCPRemotePeer &peer)
	Event handler for received messages.
virtual void	onInvalidMessage (TCPRemotePeer &peer)
	Event handler for invalid messages.
virtual void	broadcast (const std::string &bytes)
	Broadcast bytes.
virtual bool	addConnection (const std::string &host, int port, const std::string &connUser, const std::string &connPass)
	Add connection.
virtual void	setUsername (const std::string &newUsername)
	Set username.
virtual void	setPassword (const std::string &newPassword)
	Set password.
virtual void	setCurrentMsgID (unsigned int newCurrentMsgID)
	Set current Message ID.
virtual std::string	getUsername ()
	Get username.
virtual void	getPassword (std::string &target)
	Get password.
virtual unsigned int	getCurrentMsgID ()
	Get current Message ID.
Static Public Attributes
static const std::string	MAGIC_WORD = "IFTA"
	Magic word.
static const unsigned int	AUTH_VERSION = 0x000001L
	Protocol version.
static const unsigned int	AUTH_VERSION_UPPER = 0x000001L
	Protocol version (upper boundary).
static const unsigned int	AUTH_VERSION_LOWER = 0x000001L
	Protocol version (lower boundary).
static const int	MSGID_HELLO = 101
	Message type ID: HELLO.
static const int	MSGID_WELCOME = 201
	Message type ID: WELCOME.
static const int	MSGID_AUTH = 102
	Message type ID: AUTH.
static const int	MSGID_AUTH_OK = 202
	Message type ID: AUTH_OK.
static const int	MSGID_AUTH_FAILED = 401
	Message type ID: AUTH_FAILED.
static const int	PS_WAIT_WELCOME = 1
	Protocol state: Wait for WELCOME.
static const int	PS_WAIT_AUTH_RESULT = 2
	Protocol state: Wait for AUTH result.
static const int	PS_AUTH_OK = 3
	Protocol state: Authentication succeeded.
Protected Member Functions
virtual void	onConnect (TCPRemotePeer &peer)
	Event handler for new connections.
virtual void	onAuthMessage (TCPRemotePeer &peer)
	Event handler for authenticated messages.
virtual void	onAuthOK (TCPRemotePeer &peer)
	Event handler for successful authentication.
virtual void	onAuthFailed (TCPRemotePeer &peer)
	Event handler for failed authentication.
Protected Attributes
std::string	username
	Username.
std::string	password
	Password.
unsigned int	currentMsgID
	Current Message ID.

Detailed Description

Authenticated TCP client.

A Message based TCP client supporting a simple authentication protocol.

See misc/ifta.txt for a specification of the authentication protocol.

Constructor & Destructor Documentation

Ionflux::Tools::TCPAuthClient::TCPAuthClient ( )

Constructor.
Construct new TCPAuthClient object.

Ionflux::Tools::TCPAuthClient::TCPAuthClient ( bool initInteractive )

Constructor.
Construct new TCPAuthClient object.

Parameters:

initInteractive Whether this client should run interactively (i.e. read data from standard input).

Ionflux::Tools::TCPAuthClient::TCPAuthClient ( const std::string & initUsername,

const std::string & initPassword,

bool initInteractive

)

Constructor.
Construct new TCPAuthClient object.

Parameters:

initUsername Username.

initPassword Password.

initInteractive Whether this client should run interactively (i.e. read data from standard input).

Ionflux::Tools::TCPAuthClient::~TCPAuthClient ( ) [virtual]

Destructor.
Destruct TCPAuthClient object.

Member Function Documentation

bool Ionflux::Tools::TCPAuthClient::addConnection ( const std::string & host,

int port,

const std::string & connUser,

const std::string & connPass

) [virtual]

Add connection.
Attempts to establish a connection to the specified host and port. On success, the new connection will be maintained by the TCP client.

Parameters:

host Hostname or IP address of the remote host.

port Port to connect to.

connUser Username to use for the connection.

connPass Password to use for the connection.

Returns:
true on success, false otherwise.

void Ionflux::Tools::TCPAuthClient::broadcast ( const std::string & bytes ) [virtual]

Broadcast bytes.
Sends the specified byte string to all connected peers.

Parameters:

bytes The bytes to broadcast.

Reimplemented from Ionflux::Tools::TCPMessageClient.

unsigned int Ionflux::Tools::TCPAuthClient::getCurrentMsgID ( ) [virtual]

Get current Message ID.

Returns:
Current message ID.

void Ionflux::Tools::TCPAuthClient::getPassword ( std::string & target ) [virtual]

Get password.

Parameters:

target Buffer in which to store the password.

std::string Ionflux::Tools::TCPAuthClient::getUsername ( ) [virtual]

Get username.

Returns:
Username.

void Ionflux::Tools::TCPAuthClient::onAuthFailed ( TCPRemotePeer & peer ) [protected, virtual]

Event handler for failed authentication.
This is called when authentication with a peer has failed.

Note:
Override this to implement your own authentication failure handling.

Parameters:

peer The peer which caused the event.

void Ionflux::Tools::TCPAuthClient::onAuthMessage ( TCPRemotePeer & peer ) [protected, virtual]

Event handler for authenticated messages.
This is called whenever a message is received from an authenticated peer. The received message will be available from TCPRemotePeer::getMessage().

Note:
Override this to implement your own authenticated message handling.

Parameters:

peer The peer which caused the event.

void Ionflux::Tools::TCPAuthClient::onAuthOK ( TCPRemotePeer & peer ) [protected, virtual]

Event handler for successful authentication.
This is called when authentication with a peer has succeeded.

Note:
Override this to implement your own authentication success handling.

Parameters:

peer The peer which caused the event.

void Ionflux::Tools::TCPAuthClient::onConnect ( TCPRemotePeer & peer ) [protected, virtual]

Event handler for new connections.
This is called by the main loop whenever a connection to a peer is successfully established.

Note:
Override this to implement your own connection handling.

Parameters:

peer The peer which caused the event.

Reimplemented from Ionflux::Tools::TCPMessageClient.

void Ionflux::Tools::TCPAuthClient::onInvalidMessage ( TCPRemotePeer & peer ) [virtual]

Event handler for invalid messages.
This is called whenever an invalid message is received from a peer.

Note:
Override this to implement your own invalid message handling.

Parameters:

peer The peer which caused the event.

Reimplemented from Ionflux::Tools::TCPMessageClient.

void Ionflux::Tools::TCPAuthClient::onMessage ( TCPRemotePeer & peer ) [virtual]

Event handler for received messages.
This is called whenever a valid message is received from a peer. The received message will be available from TCPRemotePeer::getMessage().

Note:
Override this to implement your own message handling.

Parameters:

peer The peer which caused the event.

Reimplemented from Ionflux::Tools::TCPMessageClient.

void Ionflux::Tools::TCPAuthClient::setCurrentMsgID ( unsigned int newCurrentMsgID ) [virtual]

Set current Message ID.
Set new value of current Message ID.

Parameters:

newCurrentMsgID New value of current Message ID.

void Ionflux::Tools::TCPAuthClient::setPassword ( const std::string & newPassword ) [virtual]

Set password.
Set new value of password.

Parameters:

newPassword New value of password.

void Ionflux::Tools::TCPAuthClient::setUsername ( const std::string & newUsername ) [virtual]

Set username.
Set new value of username.

Parameters:

newUsername New value of username.

Member Data Documentation

const unsigned int Ionflux::Tools::TCPAuthClient::AUTH_VERSION = 0x000001L [static]

Protocol version.

const unsigned int Ionflux::Tools::TCPAuthClient::AUTH_VERSION_LOWER = 0x000001L [static]

Protocol version (lower boundary).

const unsigned int Ionflux::Tools::TCPAuthClient::AUTH_VERSION_UPPER = 0x000001L [static]

Protocol version (upper boundary).

unsigned int Ionflux::Tools::TCPAuthClient::currentMsgID [protected]

Current Message ID.

const std::string Ionflux::Tools::TCPAuthClient::MAGIC_WORD = "IFTA" [static]

Magic word.

const int Ionflux::Tools::TCPAuthClient::MSGID_AUTH = 102 [static]

Message type ID: AUTH.

const int Ionflux::Tools::TCPAuthClient::MSGID_AUTH_FAILED = 401 [static]

Message type ID: AUTH_FAILED.

const int Ionflux::Tools::TCPAuthClient::MSGID_AUTH_OK = 202 [static]

Message type ID: AUTH_OK.

const int Ionflux::Tools::TCPAuthClient::MSGID_HELLO = 101 [static]

Message type ID: HELLO.

const int Ionflux::Tools::TCPAuthClient::MSGID_WELCOME = 201 [static]

Message type ID: WELCOME.

std::string Ionflux::Tools::TCPAuthClient::password [protected]

Password.

const int Ionflux::Tools::TCPAuthClient::PS_AUTH_OK = 3 [static]

Protocol state: Authentication succeeded.

const int Ionflux::Tools::TCPAuthClient::PS_WAIT_AUTH_RESULT = 2 [static]

Protocol state: Wait for AUTH result.

const int Ionflux::Tools::TCPAuthClient::PS_WAIT_WELCOME = 1 [static]

Protocol state: Wait for WELCOME.

std::string Ionflux::Tools::TCPAuthClient::username [protected]

Username.

The documentation for this class was generated from the following files:
