Ionflux::Tools::SelectMultiplexer Class Reference
[I/O Multiplexing]

Select based IO event multiplexer. More...

#include <SelectMultiplexer.hpp>

Inheritance diagram for Ionflux::Tools::SelectMultiplexer:

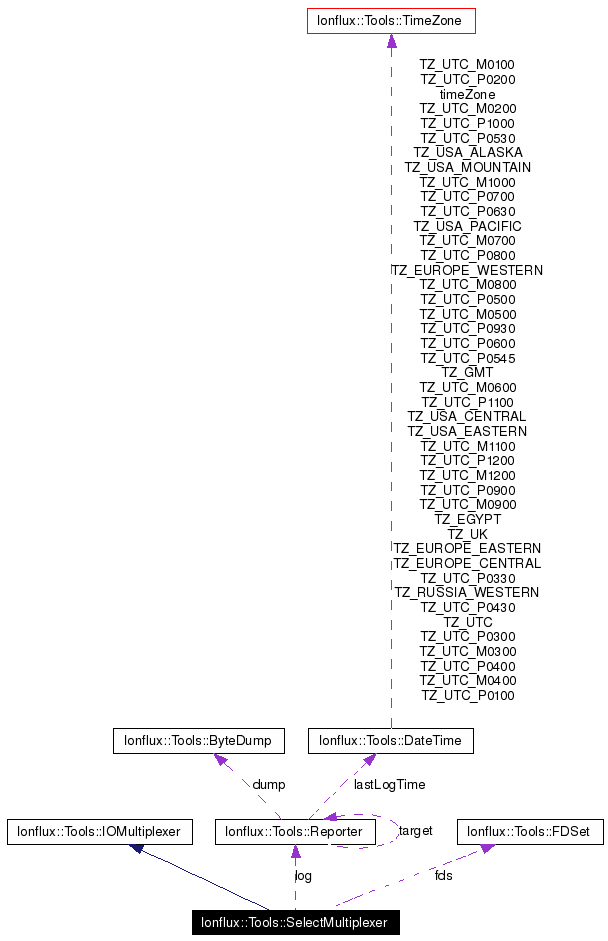

[legend]Collaboration diagram for Ionflux::Tools::SelectMultiplexer:

[legend]List of all members.

Public Member Functions
	SelectMultiplexer ()
	Constructor.
virtual	~SelectMultiplexer ()
	Destructor.
virtual void	registerEvent (IOHandler *handler, IOEvent event)
	Register IO event.
virtual void	removeEvent (IOHandler *handler, IOEvent event)
	Remove IO event.
virtual void	run ()
	Main loop.
virtual void	quit ()
	Exit main loop.
virtual bool	isRunning ()
	Get running state.
virtual Reporter &	getLog ()
	Get Console output/logging facility.
Static Public Member Functions
static void	shutdownHandler (int signum)
	Shutdown handler.
Protected Member Functions
virtual void	clearEvent (IOEventInfo *eventInfo)
	Clear event.
virtual void	clearEvents ()
	Remove events flagged for removal.
virtual void	addEvent (IOEventInfo *eventInfo)
	Add event.
virtual void	addEvents ()
	Add events flagged for registration.
Protected Attributes
Ionflux::Tools::Reporter	log
	Console output/logging.
std::vector< IOEventInfo * >	events
	Vector of registered IO events.
std::vector< IOEventInfo * >	trash
	Vector of IO events to be removed.
std::vector< IOEventInfo * >	newEvents
	Vector of IO events to be added.
FDSet	fds
	File descriptor set.
bool	running
	Main loop flag.
Static Protected Attributes
static sig_atomic_t	shutdown = 0
	Shutdown flag.

---

Detailed Description

Select based IO event multiplexer.

A multiplexer for IO events. If a specified event is ready to be processed, the IO multiplexer notifies the associated IO handler. For example, an IOHandler may be called if a file descriptor is ready for reading.

To register an event, you set a file descriptor and a mask of event types which the IO handler should be notified of. You then call IOMultiplexer::registerEvent() with a pointer to an IOHandler and the event object. To remove (unregister) an event, call IOMultiplexer::removeEvent() with the same handler and event object.

Note:

The SelectMultiplexer uses the select() method as its underlying IO multiplexing facility.

---

Constructor & Destructor Documentation

Ionflux::Tools::SelectMultiplexer::SelectMultiplexer (   )

Constructor. Construct new SelectMultiplexer object.

Ionflux::Tools::SelectMultiplexer::~SelectMultiplexer (   )  [virtual]

Destructor. Destruct SelectMultiplexer object.

---

Member Function Documentation

void Ionflux::Tools::SelectMultiplexer::addEvent (  IOEventInfo *  eventInfo  )  [protected, virtual]

Add event. Add an event to the vector of registered events. Parameters: eventInfo  Event to be added.

void Ionflux::Tools::SelectMultiplexer::addEvents (   )  [protected, virtual]

Add events flagged for registration.

void Ionflux::Tools::SelectMultiplexer::clearEvent (  IOEventInfo *  eventInfo  )  [protected, virtual]

Clear event. Removes an event from the vector of registered events. Parameters: eventInfo  Event to be removed.

void Ionflux::Tools::SelectMultiplexer::clearEvents (   )  [protected, virtual]

Remove events flagged for removal.

Reporter & Ionflux::Tools::SelectMultiplexer::getLog (   )  [virtual]

Get Console output/logging facility. Returns: The console output/logging facility used by this object. Implements Ionflux::Tools::IOMultiplexer.

bool Ionflux::Tools::SelectMultiplexer::isRunning (   )  [virtual]

Get running state. Returns: true if the main loop is running, false otherwise. Implements Ionflux::Tools::IOMultiplexer.

void Ionflux::Tools::SelectMultiplexer::quit (   )  [virtual]

Exit main loop. Call this function to exit from the main loop. Implements Ionflux::Tools::IOMultiplexer.

void Ionflux::Tools::SelectMultiplexer::registerEvent (  IOHandler *  handler, IOEvent  event )  [virtual]

Register IO event. Register an IO event to be handled by the multiplexer. Parameters: handler  IO handler to be notified if the event occurs.. event  IO event.. Implements Ionflux::Tools::IOMultiplexer.

void Ionflux::Tools::SelectMultiplexer::removeEvent (  IOHandler *  handler, IOEvent  event )  [virtual]

Remove IO event. Remove an IO event from the set of events handled by the multiplexer. Parameters: handler  IO handler for which the event has been registered.. event  IO event.. Implements Ionflux::Tools::IOMultiplexer.

void Ionflux::Tools::SelectMultiplexer::run (   )  [virtual]

Main loop. Watch for registered events. Implements Ionflux::Tools::IOMultiplexer.

void Ionflux::Tools::SelectMultiplexer::shutdownHandler (  int  signum  )  [static]

Shutdown handler. Signal handler for signals that will cause the main loop to exit. Parameters: signum  Signal. Reimplemented from Ionflux::Tools::IOMultiplexer.

---

Member Data Documentation

std::vector<IOEventInfo *> Ionflux::Tools::SelectMultiplexer::events [protected]

Vector of registered IO events.

FDSet Ionflux::Tools::SelectMultiplexer::fds [protected]

File descriptor set.

Ionflux::Tools::Reporter Ionflux::Tools::SelectMultiplexer::log [protected]

Console output/logging.

std::vector<IOEventInfo *> Ionflux::Tools::SelectMultiplexer::newEvents [protected]

Vector of IO events to be added.

bool Ionflux::Tools::SelectMultiplexer::running [protected]

Main loop flag.

sig_atomic_t Ionflux::Tools::SelectMultiplexer::shutdown = 0 [static, protected]

Shutdown flag.

std::vector<IOEventInfo *> Ionflux::Tools::SelectMultiplexer::trash [protected]

Vector of IO events to be removed.

---

The documentation for this class was generated from the following files:

• SelectMultiplexer.hpp
• SelectMultiplexer.cpp

---
