Ionflux::Tools::Cairo::Pattern Class Reference
[Cairo]

Cairo pattern. More...

#include <CairoPattern.hpp>

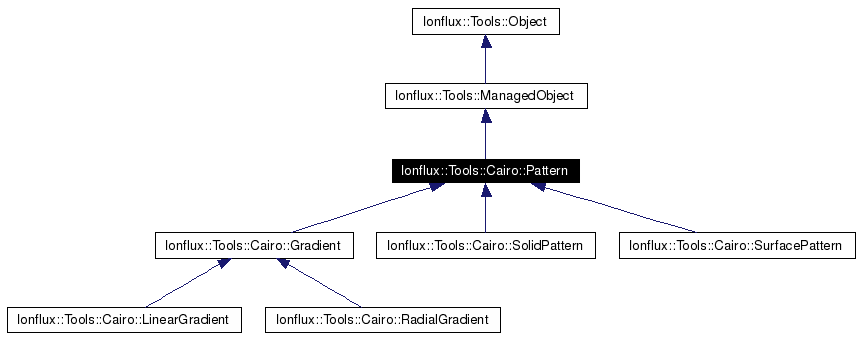

Inheritance diagram for Ionflux::Tools::Cairo::Pattern:

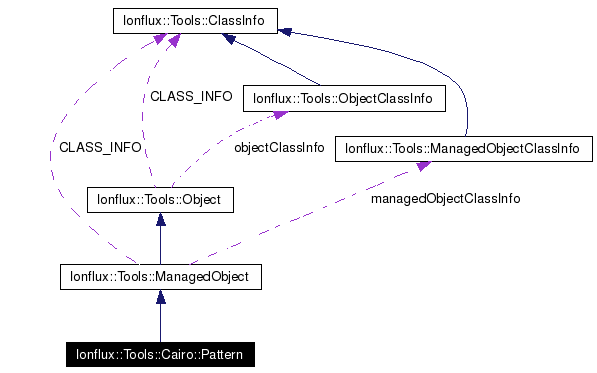

[legend]Collaboration diagram for Ionflux::Tools::Cairo::Pattern:

[legend]List of all members.

Public Member Functions
	Pattern ()
	Constructor.
	Pattern (const Pattern &initPattern)
	Constructor.
	Pattern (cairo_pattern_t *initPattern)
	Constructor.
virtual	~Pattern ()
	Destructor.
virtual void	reference ()
	Pattern.
virtual void	destroy ()
	Pattern.
virtual cairo_status_t	status ()
	Pattern.
virtual void	setMatrix (const cairo_matrix_t *matrix)
	Pattern matrix.
virtual void	getMatrix (cairo_matrix_t *matrix)
	Pattern matrix.
virtual void	setMatrix (const Matrix &matrix)
	Pattern matrix.
virtual void	getMatrix (Matrix &matrix)
	Pattern matrix.
virtual Pattern &	operator= (const Pattern &newCairoPattern)
	Assignment operator.
virtual Pattern &	operator= (cairo_pattern_t *newCairoPattern)
	Assignment operator.
virtual void	setCairoPattern (cairo_pattern_t *newCairoPattern)
	Set cairo pattern.
virtual cairo_pattern_t *	getCairoPattern () const
	Get cairo pattern.
Protected Attributes
cairo_pattern_t *	cairoPattern
	Cairo pattern.

---

Detailed Description

Cairo pattern.

Base class for the Cairo vector graphics API pattern types (see http://www.cairographics.org/).

Note:

Not all features of Cairo are supported yet by this wrapper.

---

Constructor & Destructor Documentation

Ionflux::Tools::Cairo::Pattern::Pattern (   )

Constructor. Construct new Pattern object.

Ionflux::Tools::Cairo::Pattern::Pattern (  const Pattern &  initPattern  )

Constructor. Construct new Pattern object. Parameters: initPattern  Cairo pattern.

Ionflux::Tools::Cairo::Pattern::Pattern (  cairo_pattern_t *  initPattern  )

Constructor. Construct new Pattern object. Parameters: initPattern  Cairo pattern.

Ionflux::Tools::Cairo::Pattern::~Pattern (   )  [virtual]

Destructor. Destruct Pattern object.

---

Member Function Documentation

void Ionflux::Tools::Cairo::Pattern::destroy (   )  [virtual]

Pattern. Pattern

cairo_pattern_t * Ionflux::Tools::Cairo::Pattern::getCairoPattern (   )  const [virtual]

Get cairo pattern. Returns: Current value of cairo pattern.

void Ionflux::Tools::Cairo::Pattern::getMatrix (  Matrix &  matrix  )  [virtual]

Pattern matrix. Pattern matrix Parameters: matrix  Matrix.

void Ionflux::Tools::Cairo::Pattern::getMatrix (  cairo_matrix_t *  matrix  )  [virtual]

Pattern matrix. Pattern matrix Parameters: matrix  Matrix.

Pattern & Ionflux::Tools::Cairo::Pattern::operator= (  cairo_pattern_t *  newCairoPattern  )  [virtual]

Assignment operator. Assign a cairo pattern to this pattern object. Parameters: newCairoPattern  Cairo pattern. Returns: The object itself. Reimplemented in Ionflux::Tools::Cairo::Gradient, Ionflux::Tools::Cairo::LinearGradient, Ionflux::Tools::Cairo::RadialGradient, Ionflux::Tools::Cairo::SolidPattern, and Ionflux::Tools::Cairo::SurfacePattern.

Pattern & Ionflux::Tools::Cairo::Pattern::operator= (  const Pattern &  newCairoPattern  )  [virtual]

Assignment operator. Assign a pattern to another pattern. Parameters: newCairoPattern  Cairo pattern. Returns: The object itself.

void Ionflux::Tools::Cairo::Pattern::reference (   )  [virtual]

Pattern. Pattern

void Ionflux::Tools::Cairo::Pattern::setCairoPattern (  cairo_pattern_t *  newCairoPattern  )  [virtual]

Set cairo pattern. Set new value of cairo pattern. Parameters: newCairoPattern  New value of cairo pattern.

void Ionflux::Tools::Cairo::Pattern::setMatrix (  const Matrix &  matrix  )  [virtual]

Pattern matrix. Pattern matrix Parameters: matrix  Matrix.

void Ionflux::Tools::Cairo::Pattern::setMatrix (  const cairo_matrix_t *  matrix  )  [virtual]

Pattern matrix. Pattern matrix Parameters: matrix  Matrix.

cairo_status_t Ionflux::Tools::Cairo::Pattern::status (   )  [virtual]

Pattern. Pattern Returns: .

---

Member Data Documentation

cairo_pattern_t* Ionflux::Tools::Cairo::Pattern::cairoPattern [protected]

Cairo pattern.

---

The documentation for this class was generated from the following files:

• CairoPattern.hpp
• CairoPattern.cpp

---
